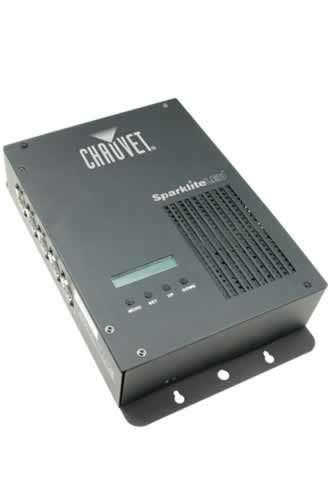

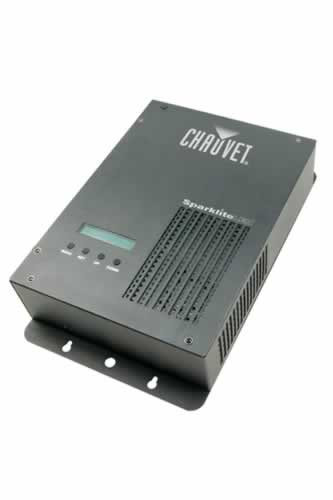

With the SparkliteLED' controller, users control color, strobing and brightness in each zone, create original shows or use the built-in programs of the SPARKLITED LED Drape.
FEATURES INCLUDE:• 12 or 24-channel LED bank system
• Operating modes:
12-channel: macro, strobe, automatic, custom, DMX modes
24-channel: RGB of all separate sections
• Built-in programs via DMX
• Individual control over eight zones of each drape (16 LEDs per zone)
• LCD display
• RGB color mixing with or without DMX controller
• Recall custom programs via master/slave or DMX
• User configurable auto Programs
• Configurable LED sparking direction and speed
• Configurable LED group sparking cross fade time
• Configurable LED minimum and maximum luminosity
• Configurable color sets
• Master/Slave (proprietary serial link)
• Static playing
SPECIFICATIONS:• Light source: 1/4 W, 5 mm, RGB LEDs (128 LEDs per drape, up to four drapes per controller)
• Power and current: 120 V, 60 Hz; 37 W, 0.32 A (operating), 0.1 A (inrush), PF 0.96
230 V, 50 Hz; 35 W, 0.29 A (operating), 0.1 A (inrush), PF 0.52
• AC power: Auto-ranging 100 240 V 50/60 Hz
• Weight: 8.8 lbs / 4 kg
• Size: 13.3 x 8.3 x 3.3 in / 340 x 210 x 83 mm
