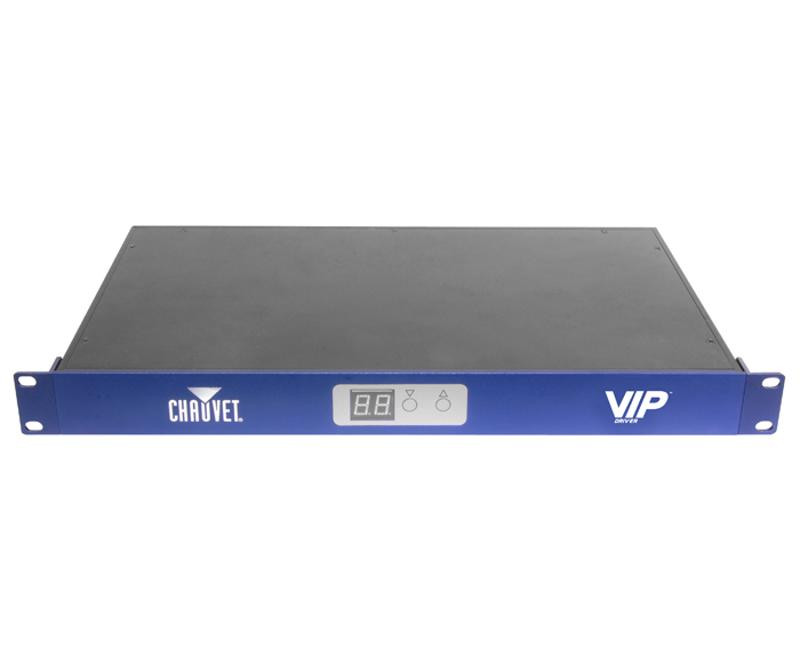

Chauvet Professional VIPDRIVER VIP Video Display Driver

• Required for panel calibration and video conversion to CHAUVET MVP' and PVP' video panels

• CHAUVET LED Studio software connects directly to the VIP' Driver via USB for patching and panel configuration

• Accepts either DVI or HDMI input

• 2 Neutrik etherCON outputs (655,360 LEDs capacity each)

• Capable of up to 1,310,720 LEDs and is scalable to link up to 4 units in a single system ?(5,242,880 LEDs total capacity)



Specifications

• Control Protocol: LINSN

• Data Connectors: Neutrik etherCON (2), USB

• Video Input: DVI-I or HDMI (requires progressive scan, not interlaced)

• Linking Connection: RS-232 (9-pin)

• Rackmount: 1U

• Required Software: CHAUVET LED Studio (included) and Windows7

• Software Connection: USB

• IP Rating: IP20, dry location

• Cable Length: 5 ft (1.5 m)

• Power Connection: Edison plug to IEC

• Power Input: IEC

• Maximum Supported LEDs (per VIP' Driver): 1,310,720

• Maximum Supported LEDs (4 VIP' Drivers total): 5,242,880

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 40 W, 0.33 A @ 120 V, 60 Hz

• Power and Current: 40 W, 0.19 A @ 208 V, 60 Hz

• Power and Current: 40 W, 0.17 A @ 230 V, 50 Hz
• Weight: 5 lb (2.27 kg)

• Dimensions: 19 x 10 x 1.7 in (483 x 254 x 44 mm)

• Housing Material: Aluminum alloy

• Approvals: CE, FCC
