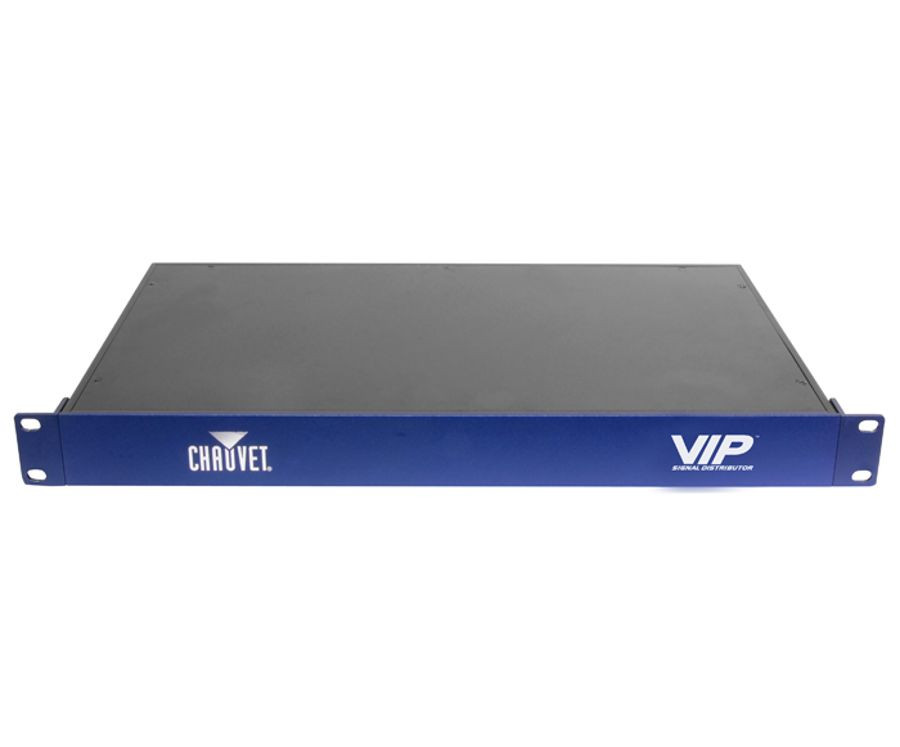

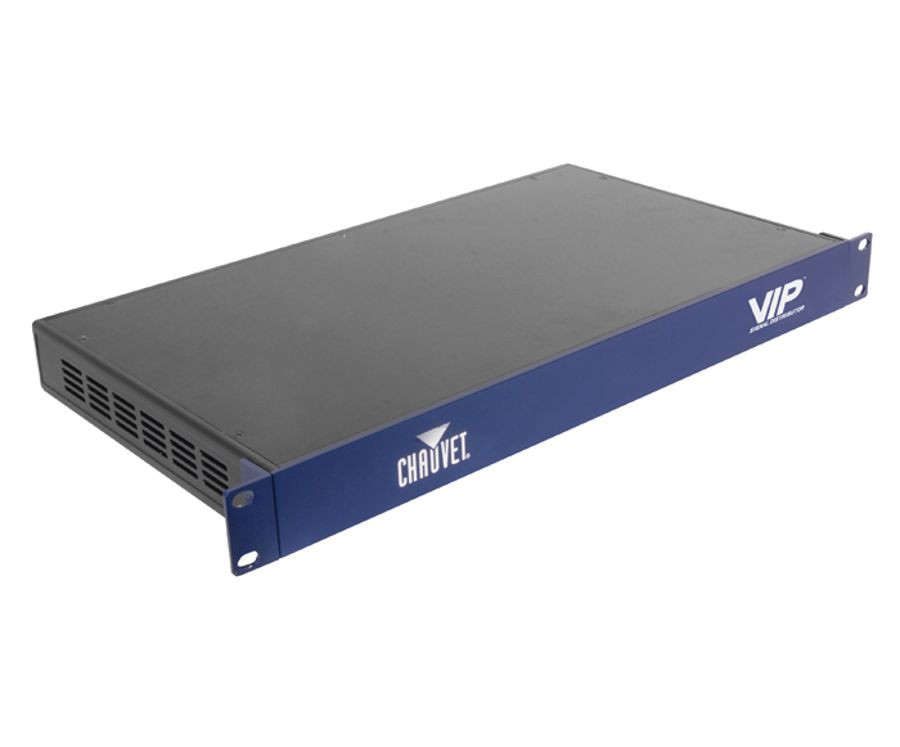

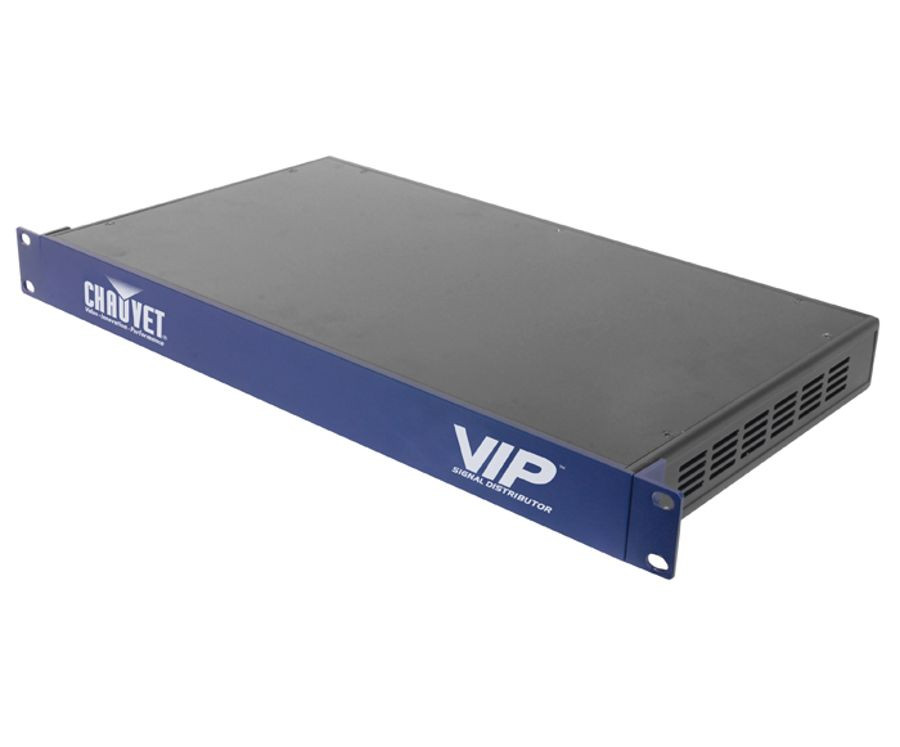

VIP' Signal Distributor (required for systems over 24 panels) splits and amplifies the signal from the VIP' Driver to the panels and is capable of 4-way, dual-channel splitting or 8-way, single-channel splitting.
• Distributes and amplifies the output from the VIP' Driver for up to 192 panels
• The VIP' Signal Distributor is required for systems of 25 or more video panels
• Serves as a 2-channels, 4-way or 1-channel, 8-way device
• You may link multiple units together for greater quantities
• Required for signal cable runs over 100m
• Rackmount: 2U
• Housing Material: Aluminum alloy/steel
• Power Connection: IEC

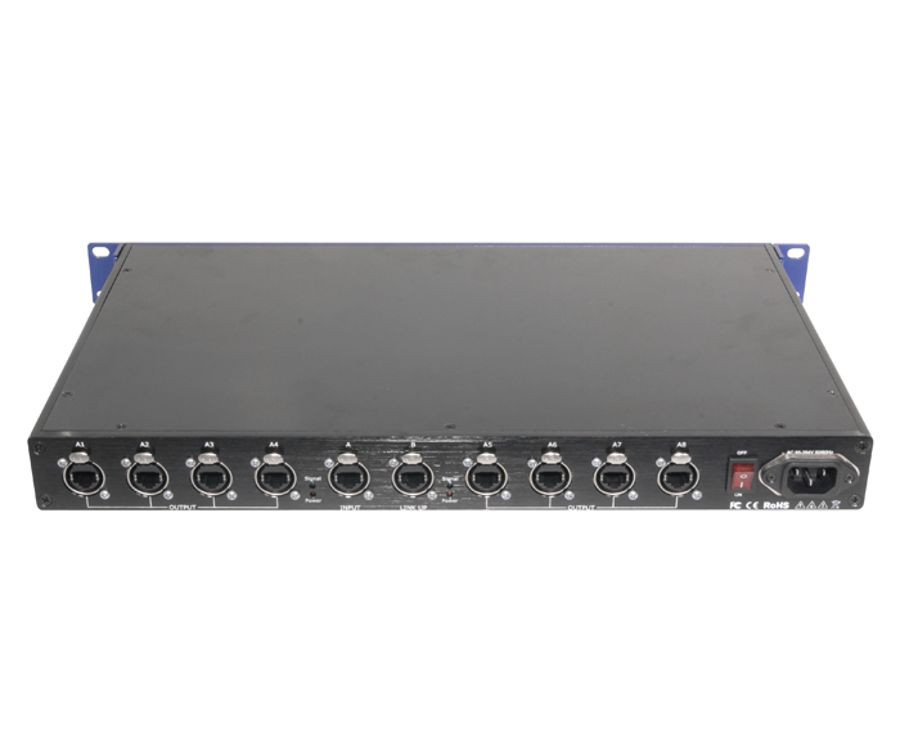

• Video Inputs: etherCON (2)
• Video Outputs: etherCON (8)
• Video Refresh Rate: 60fps
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 40W, 0.33A @ 120V 60Hz
• Power and Current: 40W, 0.19A @ 208V 60Hz
• Power and Current: 40W, 0.17A @ 230V 50Hz
• Weight: 5lbs (2.27kg)
• Size: 19 x 10 x 1.7in (483 x 254 x 44mm)
• IP Rating: IP20
• Approvals: CE, ROHS, FCC
