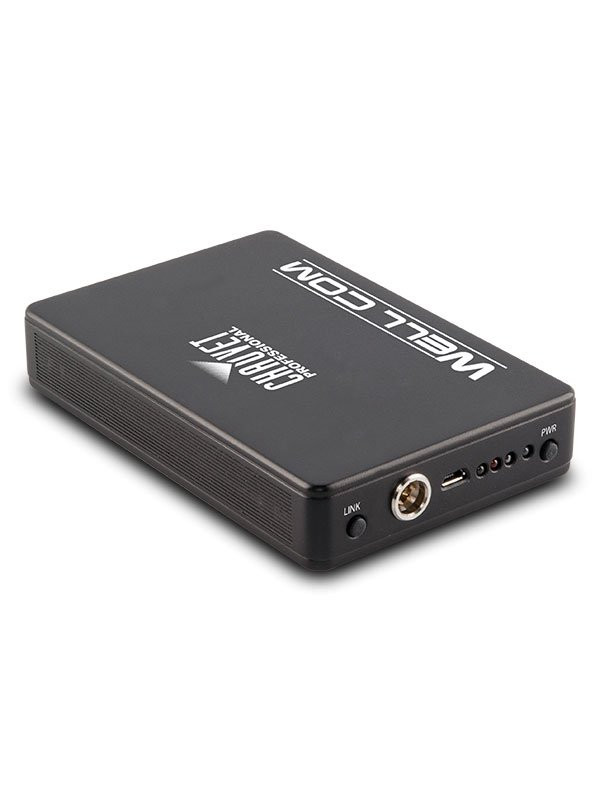

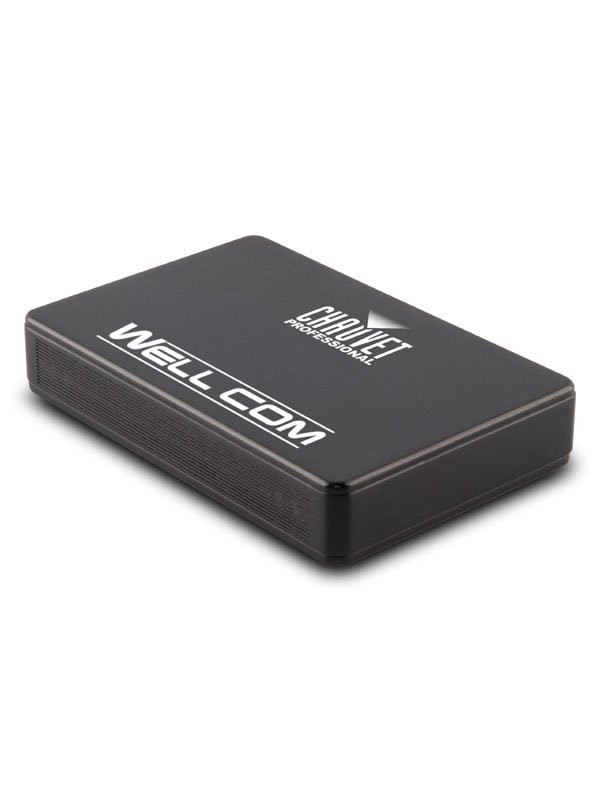

Chauvet Professional WELL Com Wireless Controller

FEATURES:
• Compact, easy-to-use battery powered Wi-Fi' receiver and wireless WDMX' transmitter combined with an Android' or iOS based control app
• 8 hours of usage on a full charge
• Compatible with Android' and iOS on both smartphones and tablets
• Output can be used in wireless WDMX' or wired DMX protocols
• Full universe of DMX available for programming larger events
• Built in color picker and color macros for use with RGB, RGBA, and RGBW wash fixtures
• Program up to 24 steps per scene with selectable fade and hold times for building chases and cues
• A total of 18 scenes available for playback
• Easy to navigate user interface
• Line-of-sight distance up to 200 m

Specifications

Dynamic Effects
Standalone Color Mixing: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

Construction / Physical
Dimensions: 5.13 x 3.34 x 0.98 in (130.4 x 85 x 25 mm)
Weight: 0.6 lb (0.3 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections
Power Input: Micro USB-B Male
Data Connectors: 5-pin XLR
Cable Length (Dmx): 17 in (0.43 m)
Cable Length (power): 3 ft (0.91 m)

Control
Control Protocol: DMX, W-DMX', Wi-fi
DMX Channels: 512

Electrical
Input Voltage: 5 VDC, 1600 mA (external power supply: 100-240 VAC 47/63 Hz)
Power and Current: 7 W, 0.125 A @ 120 V, 60 Hz
Power and Current: 6 W, 0.078 A @ 208 V, 60 Hz
Power and Current: 6 W, 0.075 A @ 230 V, 50 Hz

Battery
Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 8 hours
Battery Life: 8 hours
Battery Power: 3.7 V, 6,000 mAh

Certifications / Qualifications
CE, FCC
IP Rating: IP20, dry location

What's Included
WELL COM
USB-A Male to Micro USB-B Male (3 ft)
5-pin DMX adaptor
External power supply

Required Accessories
WELL COM App available for download on iOS or Android store

Optional Accessories
DMX Cables
