FEATURES: • A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.
• Chrome exterior for blending into its surroundings.

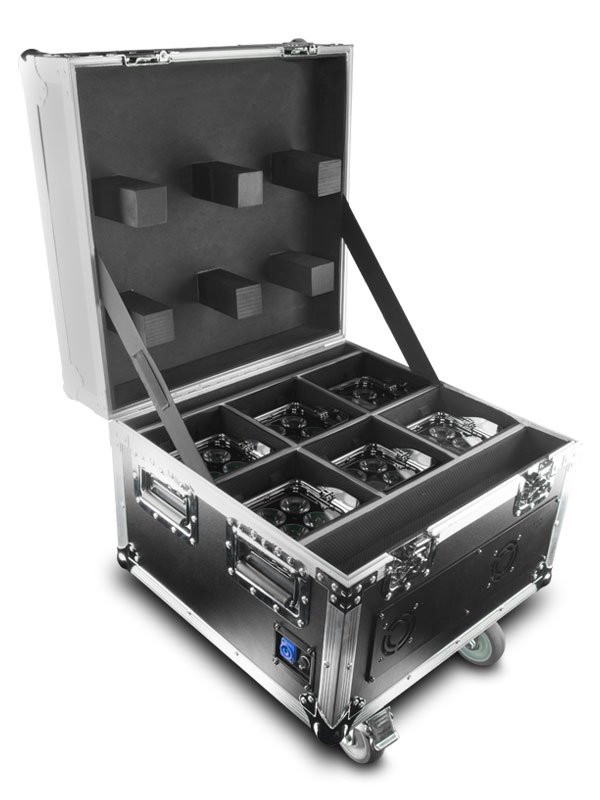

• Ships with 6 slot drop in charging case for easy storage and re-charging of the battery.
• 8 hours of operation at full and a quick 5 hours charging time for frequent use.
• Built in automated programs recallable by IR, WDMX or manually.
• M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.
Specifications Optical
• Light Source: 4 LEDs (quad- color RGBA) 10 W, (720 mA), 50,000 hours life expectancy).
• Beam Angle: 11
• Field Angle: 18
• Illuminance (18): 800 lux @ 5 m
• PWM Frequency: 1200 Hz
Dynamic Effects
• Color Macros: 5 macros
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 24 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
Construction / Physical
• Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm)
• Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)
• Weight (single unit) 7.4 LB (3.4 kg)
• Weight (charging case): 103.6 lb (47 kg)
• Exterior Color: Chrome
• Housing Material: Aluminum die-cast
Connections
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: W-DMX', IRC
• DMX Channels: 3, 4, 6 or 10
• Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current (single unit charging): 48 W, 0.44 A @ 120 V, 60 Hz
• Power and Current (charging case): 288 W, 2.44 A @ 120 V, 60 Hz
• Power and Current (single unit charging): 48 W, 0.25 A @ 208 V, 60 Hz
• Power and Current (charging case): 288 W, 1.5 A @ 208 V, 60 Hz
• Power and Current (single unit charging): 48 W, 0.23 A @ 230 V, 50 Hz
• Power and Current (charging case): 288 W, 1.38 A @ 230 V, 50 Hz
Battery
• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 5 hours
• Battery Life: (all on) 8 hours, (single LED) 20 hours
• Battery Power: 14.8 V, 11 Ah
Certifications / Qualifications
• CE
• IP Rating: IP65, temporary outdoor/wet use
What's Included
• WELLFITX6
• (6) WELL FIT
• (1) Charging case
• (1) IR remote
• (1) powerCON power cable with Edison plug
• (1) QRG
• (1) Warranty card
Optional Accessories
• Clamps
• W-DMX Transmitter
