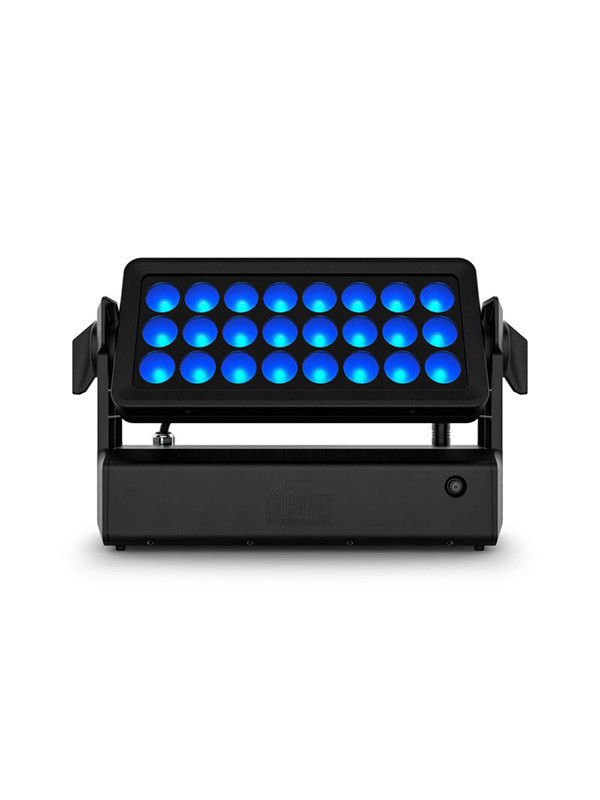

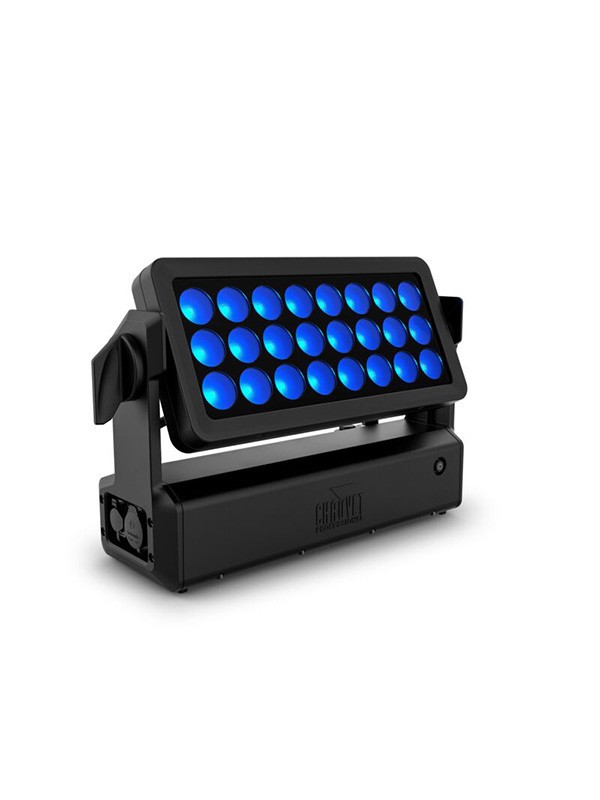

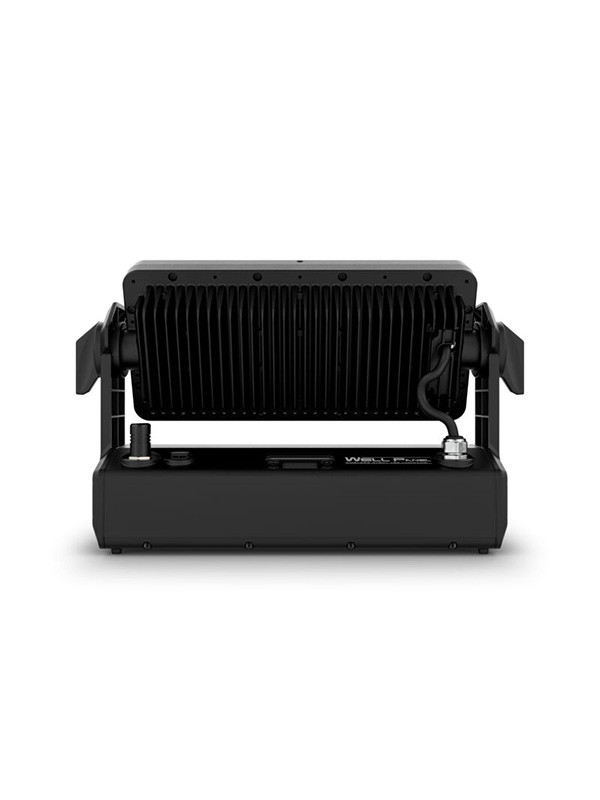

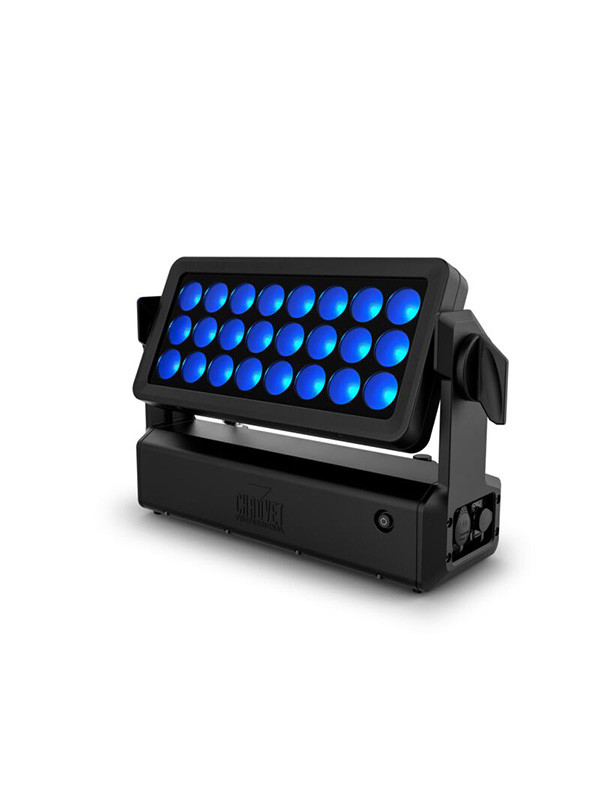

• A completely wireless, IP65 rated, battery powered fixture with 24 quad color (red, green, blue and warm white) LEDs that is controlled by W-DMX, IR, DMX or control panel
• High CRI value of 90+ across different color temperatures of white
• Selectable Red Shift emulation over DMX and from the fixture display
• Selectable PWM settings
• Selectable dimming speed and curves
• Built in color temperature presets and
• RDM control over DMX for fixture setup and reporting
• Line voltage input allows fixture to operate while being charged
• Built in power loss detection when operating under line voltage
• Wireless operation with WDMX or IR remote (not included) as well as wired DMX operation
• Magnetic diffuser filter included for wider light coverage
• Omega bracket included for easy hanging options
• User selectable hours of operation (3, 5, 8, 12) at full output with a recharge time of 4 hours
• Built in automated programs recallable by W-DMX, DMX or manually.
• 170-degree rotation of the panel from the base for easy direction of light
• IP65 rating for temporary outdoor usage
• Accessory filter pack with 10 x 60 and 40R60 sold separately
Optical• Light Source: 24 LEDs (24 red, 24 green, 24 blue, 24 warm white) 1 to 3 W, (500 mA), 50,000 hours life expectancy.
• Lumens: 5117 w/filter, 5773 w/o filter
• Installed Optics: 15
• Beam Angle (w/o filter): 14
• Beam Angle (w/filter): 32.3
• Field Angle (w/o filter): 25.8
• Field Angle (w/filter): 54.4
• Illuminance (w/o filter): 2830 lux @ 5 m
• Illuminance (w/ filter): 550 lux @ 5 m
Dynamic Effects• Tilt: 170
• Tilt Ranges: 0 to 170 tilt
• Color Macros: 20 color macros
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Built in red shift: yes
• Dim Modes: 4 dimming curves and 3 dimming speed settings
• Built-in Automated Programs: Yes
Construction / Physical• Dimensions: 17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)
• Weight (single unit): 22.6 lb (10.3 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
Connections• Power Connection: Seetronic PowerKon IP 65
• Power Input/output: Seetronic PowerKon IP 65
• Data input/output: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control• Control Protocol: W-DMX TRX, IRC, DMX, RDM
• DMX Channels: 4, 7, 12, 13, or 20
• Modes/Personalities: 6 personalities (4Ch, 7Ch, 12Ch, 13Ch, 12Ch2, 20Ch)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current (single unit charging): 123 W, 1.029 A @ 120 V, 60 Hz
• Power and Current (single unit charging): 124 W, 0.587 A @ 208 V, 60 Hz
• Power and Current (single unit charging): 123 W, 0.532 A @ 230 V, 50 Hz
Battery• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 4 hours
• Battery Life: selectable: 3, 5, 8, 12 hrs
Certifications / Qualifications• CE, FCC
• IP Rating: IP65, temporary outdoor/wet use with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• WELL Panel
• Magnetic filter
• Omega bracket
• QRG
Optional Accessories• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• Accessory filter pack with 10 x 60 and 40R60 sold separately (Well Panel Filter Pack)
