Chauvet Professional WELLQUADM Discreet RGBA LED Uplight

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional wellquadm
chauvet professional wellquadm Chauvet Professional WELLQUADM Discreet RGBA LED Uplight Chauvet Professional WELLQUADM Discreet RGBA LED Uplight Chauvet Professional WELLQUADM Discreet RGBA LED Uplight

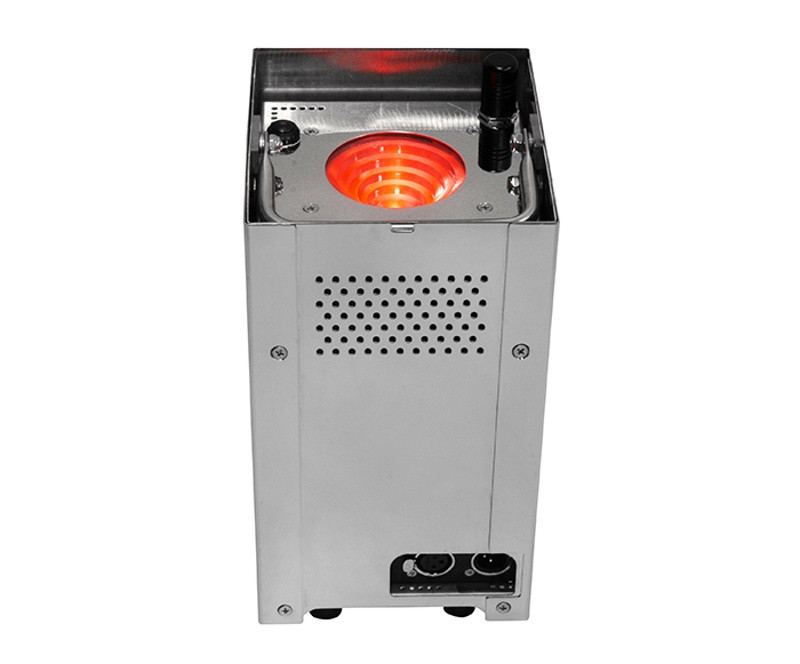

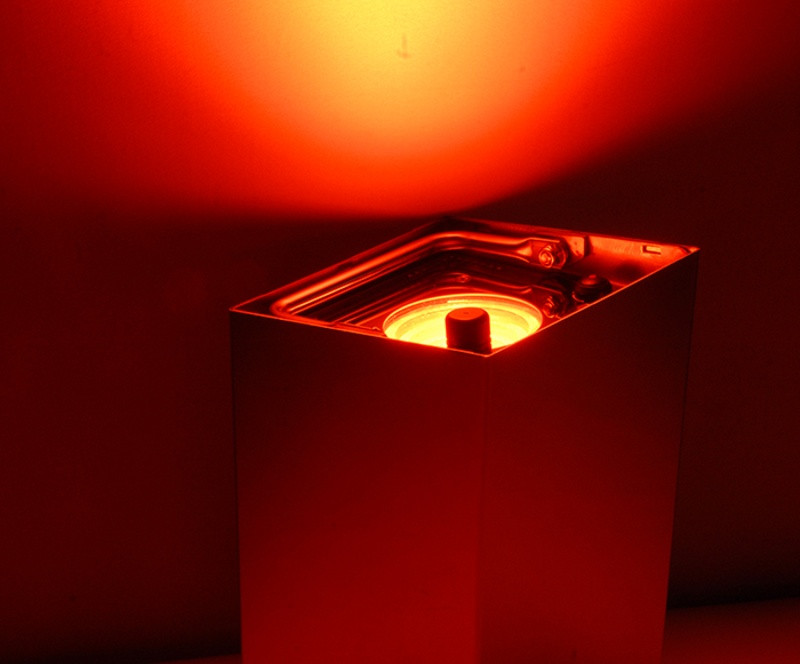

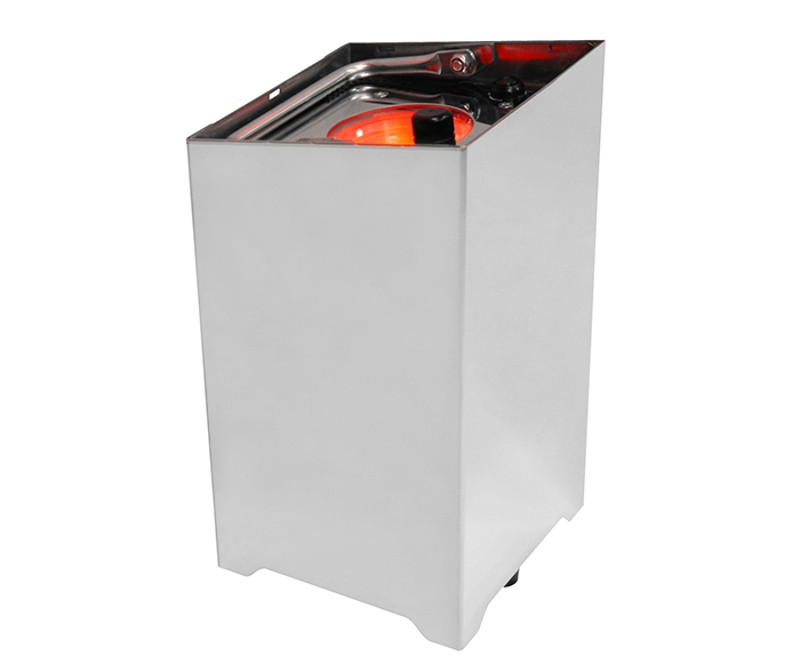

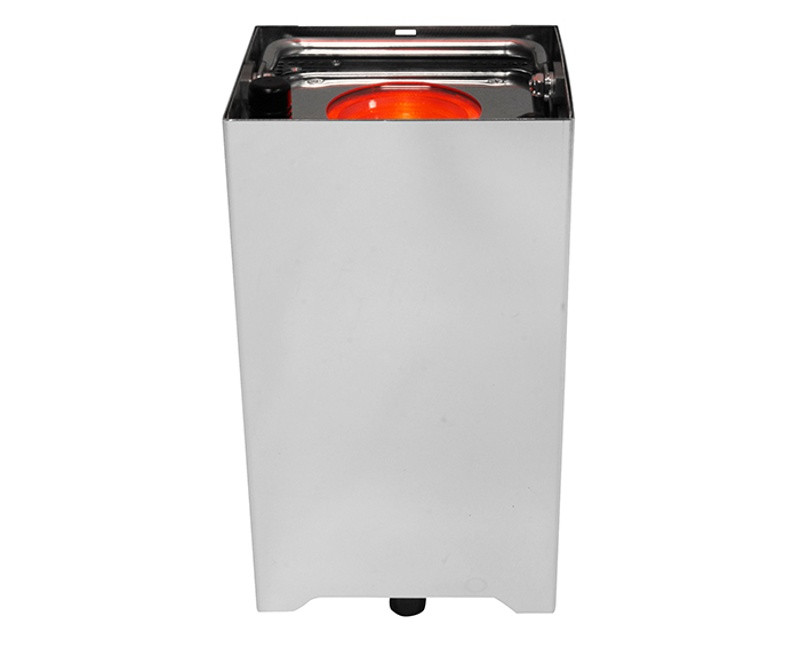

WELL' Quad-M is a discreet LED uplight powered by a rechargeable lithium-ion battery. Its reflective housing blends into any decor. A single 40-watt quad-colored RGBA LED is mounted in a manually adjustable tilting lens plate, and mixes and fades colors beautifully. WELL' Quad-M can be controlled with DMX cables or wirelessly with either W-DMX or the included IR remote. The carrying case doubles as a charger. WELL' Quad-M is an excellent choice for uplighting drapery and columns at corporate events or weddings. Raincoat included.

Features
• 3, 4, 5, 6, 10 or 15 DMX channels
• 16-bit dimming of individual colors as well as master dimmer
• Lithium ion battery
• IR remote controllable (remote included)
• 10-hour battery life at full output
• 10-hour charge time from 0 to 100%
• Reflective mirror finish, blends with surroundings
• Easy-to-use charger included

Specifications
• DMX Channels: 3, 4, 5, 6, 10 or 15
• Data Connectors: 3- and 5-pin XLR
• Light Source: 1 LED (quad-color RGBA) 40 W, (650 mA), 50,000 hours life expectancy
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20Hz
• Stand Alone Color Mixing: Yes
• Color Temperature Presets: Yes
• Beam Angle (with color blend filter): 15
• Beam Angle (without color blend filter): 9
• Field Angle (with color blend filter): 28
• Field Angle (without color blend filter): 22.5
• Frequency (operating): 2.4 GHz
• Dimming Modes: 8
• Illuminance (with color blend filter): 246 lux @ 5 m,
• Illuminance (without color blend filter): 504 lux @ 5 m
• Color Temperature (range): 2,800 to 10,000 K
• IP Rating: IP44, temporary outdoor use
• Cable Length (single unit): 5 ft (1.5 m)
• Power Connection (single unit): Edison plug to IEC
• Power Input (single unit): IEC
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current (single unit charging ): 79 W, 0.65 A @ 120 V, 60 Hz
• Power and Current (single unit charging ): 83 W, 0.39 A @ 208 V, 60 Hz
• Power and Current (single unit charging ): 84 W, 0.36 A @ 230 V, 50 Hz
• Battery Charge Time: 10 hours
• Battery Life (full output): 10 hours
• Battery Power: 22.2 VDC, 8.8 Ah
• Weight (single unit): 12.2 lb (5.53 kg)
• Dimensions (single unit): 6.06 x 6.06 x 11.32 in (154 x 154 x 287.6 mm)
• Approvals: CE
