Chauvet Professional WELLQUADMX6 6-Pack of WellQuadM with Charging Case

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional wellquadmx6
chauvet professional wellquadmx6 Chauvet Professional WELLQUADMX6 6-Pack of WellQuadM with Charging Case Chauvet Professional WELLQUADMX6 6-Pack of WellQuadM with Charging Case Chauvet Professional WELLQUADMX6 6-Pack of WellQuadM with Charging Case Chauvet Professional WELLQUADMX6 6-Pack of WellQuadM with Charging Case

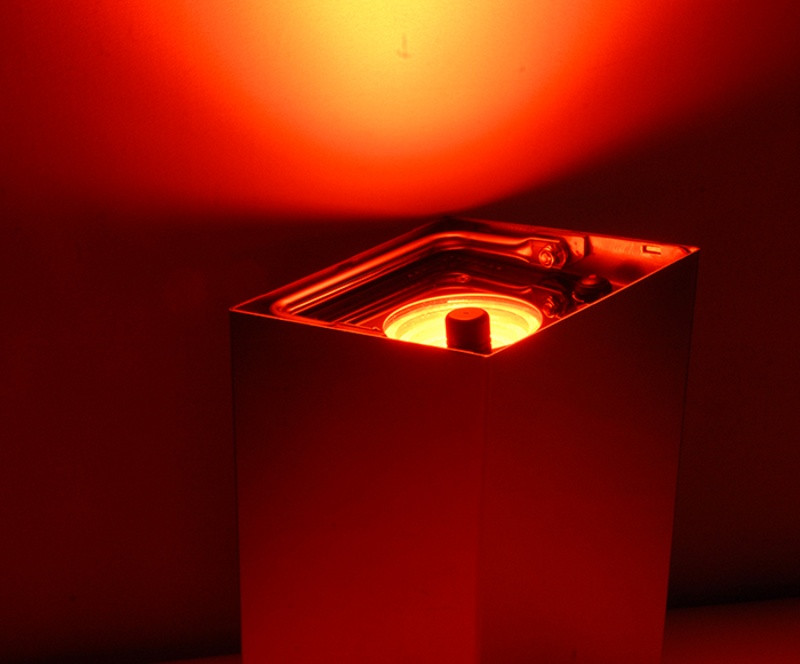

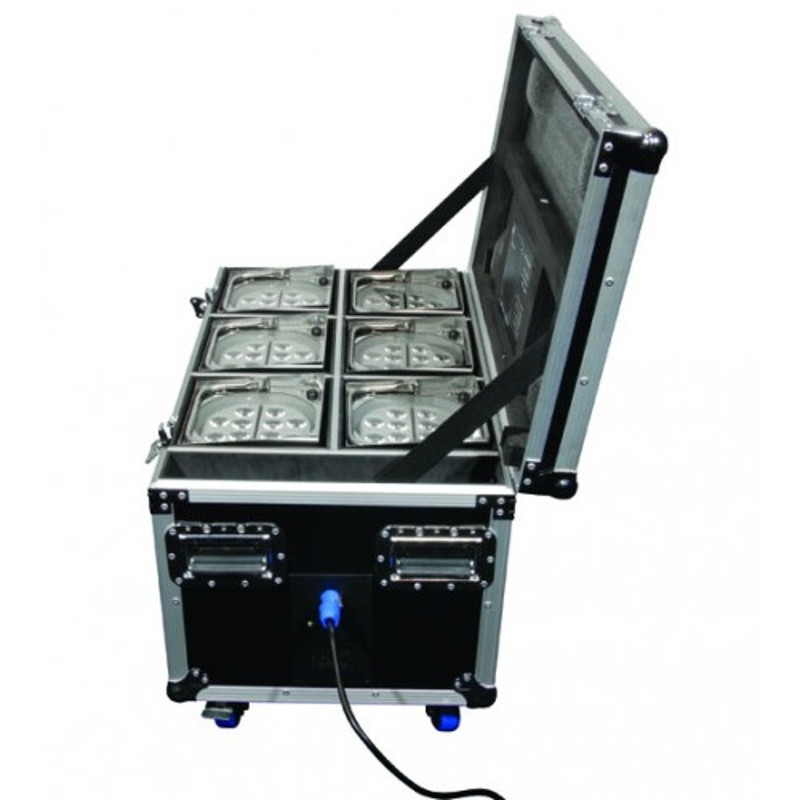

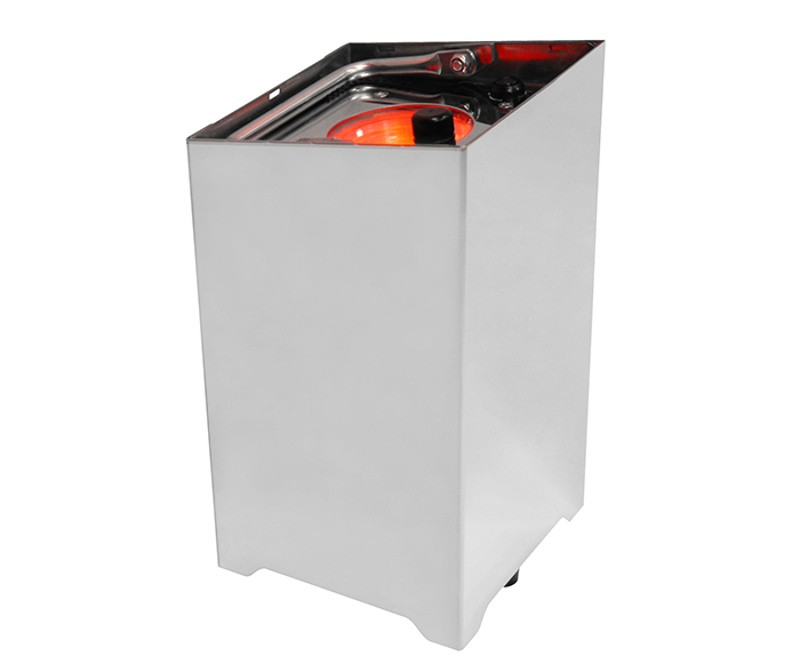

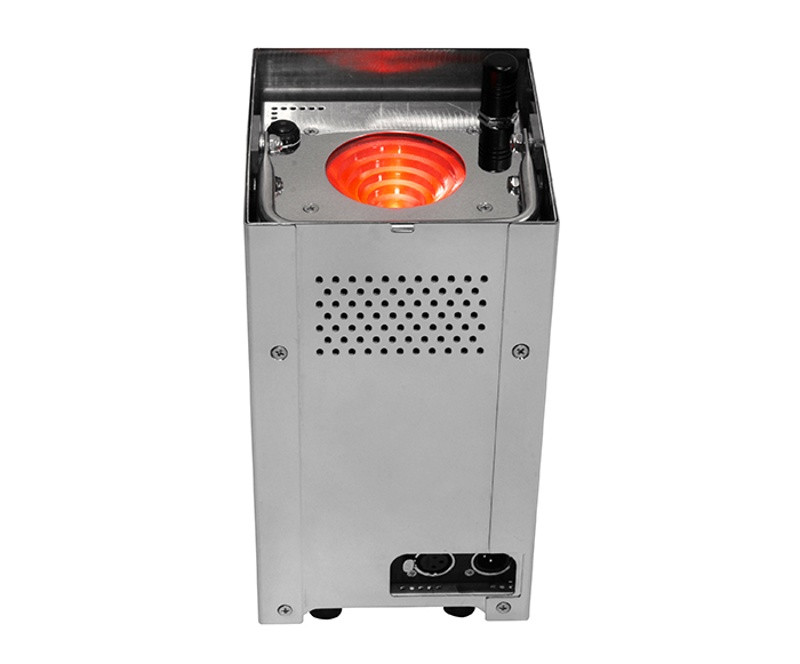

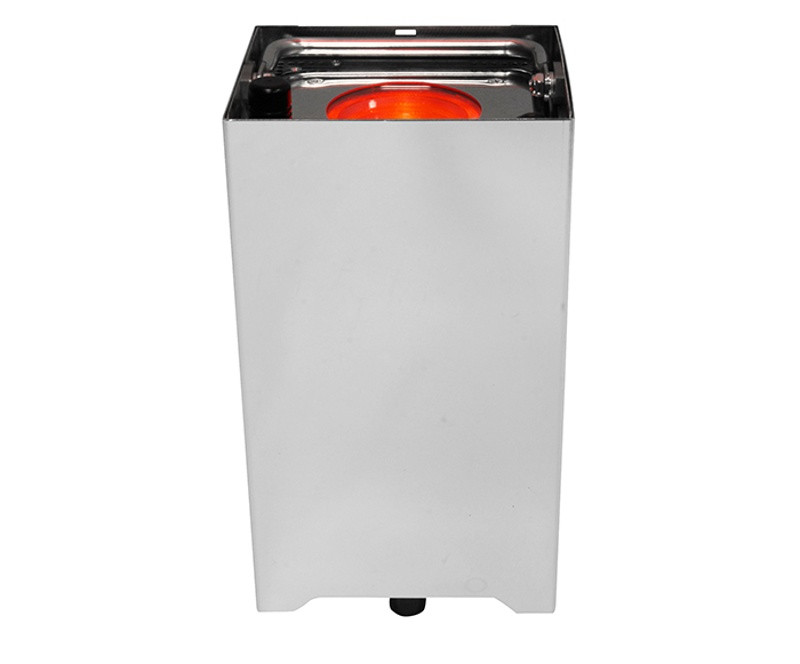

The WELL Quad-M 6-Pack includes integrated flight case, charging unit, remote control, rain covers, and PowerCon cord. WELL' Quad-M is a discreet LED uplight powered by a rechargeable lithium-ion battery. Its reflective housing blends into any decor. A single 40-watt quad-colored RGBA LED is mounted in a manually adjustable tilting lens plate, and mixes and fades colors beautifully. WELL' Quad-M can be controlled with DMX cables or wirelessly with either W-DMX or the included IR remote. The carrying case doubles as a charger. WELL' Quad-M is an excellent choice for uplighting drapery and columns at corporate events or weddings. Raincoat included.

Features
• 3, 4, 5, 6, 10 or 15 DMX channels
• 16-bit dimming of individual colors as well as master dimmer
• Lithium ion battery
• IR remote controllable (remote included)
• 10-hour battery life at full output
• 10-hour charge time from 0 to 100%
• Reflective mirror finish, blends with surroundings
• Easy-to-use charger included

Specifications
• DMX Channels: 3, 4, 5, 6, 10 or 15
• Data Connectors: 3- and 5-pin XLR
• Light Source: 1 LED (quad-color RGBA) 40 W, (650 mA), 50,000 hours life expectancy
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20Hz
• Stand Alone Color Mixing: Yes
• Color Temperature Presets: Yes
• Beam Angle (with color blend filter): 15
• Beam Angle (without color blend filter): 9
• Field Angle (with color blend filter): 28
• Field Angle (without color blend filter): 22.5
• Frequency (operating): 2.4 GHz
• Dimming Modes: 8
• Illuminance (with color blend filter): 246 lux @ 5 m,
• Illuminance (without color blend filter): 504 lux @ 5 m
• Color Temperature (range): 2,800 to 10,000 K
• IP Rating: IP44, temporary outdoor use
• Cable Length (single unit): 5 ft (1.5 m)
• Cable Length (charging case): 5 ft (1.5 m)
• Power Connection (single unit): Edison plug to IEC
• Power Connection (charging case): Edison plug to powerCON
• Power Input (single unit): IEC
• Power Input (charging case): powerCON
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current (single unit charging ): 79 W, 0.65 A @ 120 V, 60 Hz
• Power and Current (charging case charging ): 474 W, 3.9 A @ 120 V, 60 Hz
• Power and Current (single unit charging ): 83 W, 0.39 A @ 208 V, 60 Hz
• Power and Current (charging case charging ): 498 W, 2.34 A @ 208 V, 60 Hz
• Power and Current (single unit charging ): 84 W, 0.36 A @ 230 V, 50 Hz
• Power and Current (charging case charging ): 504 W, 2.16 A @ 230 V, 50 Hz
• Battery Charge Time: 10 hours
• Battery Life (full output): 10 hours
• Battery Power: 22.2 VDC, 8.8 Ah
• Weight (single unit): 12.2 lb (5.53 kg)
• Weight (charging case): 143.3 lb (65 kg)
• Dimensions (single unit): 6.06 x 6.06 x 11.32 in (154 x 154 x 287.6 mm)
• Dimensions (charging case): 27 x 16 x 23 in (686 x 407 x 584 mm)
• Approvals: CE

Additional Information

UPCN/A
SKUWELLQUADMX6
ManufacturerChauvet Professional
Product ConditionNew - On Clearance
ReturnableNo
