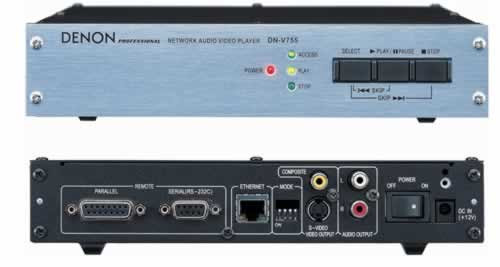

FEATURES:* 40 GB internal hard drive (DN-V755 only)
* PCMCIA Flash Card slot (DN-V750 only)
* Up to 8 hours of DVD quality video
* Internally expandable to 137 GB
* Plays 720 x 480 MPEG-2 at 10 Mbps OR BELOW
* Plays I-Pictures (720 x 480)
* Plays Wav or MPEG-1 (layer II) audio at 44.1 kHz or 48 kHz
* Parallel remote control (Switch closure on 15-pin D-sub)
* Serial control (RS-232C on 9-pin D-sub)
* Ethernet control (LAN/RJ-45)
* Realtime clock for scripted/automated playback of A/V files
* FTP Site Command Server for audio, video, picture and scripting/automation uploads
* Simple Windows application for easy set-up and file transfer
* S-Video and Composite (RCA) video outputs
* Unbalanced (RCA) stereo audio outputs
TECHNICAL SPECIFICATIONS:Playable formats* Movie + sound or movie only
* ISO/IEC 13818-1 MPEG2 MP@ML PS (Program Stream) files (movie + sound)
* ES files (movie only) Resolution : 720 480 (NTSC) / 720 576 (PAL)
Still images
ISO/IEC 13818-2 MPEG2 MP@ML ES files
Resolution : 720 480 (NTSC) / 720 576 (PAL) per frame intraframe
Audio format
MPEG1-Audio Layer 2 (ISO/IEC 11172-3)
Sampling frequency : 48 kHz, 44.1 kHz
Max. bit rate
Max.10 Mbps total for video + audio (as per card performance)
Recording medium* Recommended Flash memory card (DN-V750)
* Built-in hard disc drive (DN-V755)
Input/output terminals* Composite output RCA terminal
* Y/C separated signal output S terminal
* Audio output RCA terminal (stereo)
* DC input terminal, serial mode (D-sub female 9 pin) terminal 10(RS-232C)
* Parallel remote (D-sub female 15 pin) terminal
* Ethernet (LAN) (RJ-45) terminal (10 BASE-T/100 BASE-TX, automatic selection)
Video performance* Video outputs Composite:
1.0 Vp-p (negative resistance 75)
* S-Video Y (brightness) signal:
1.0 Vp-p (negative resistance 75)
* C (color) signal: 286 mVp-p (negative resistance 75) (NTSC)
300 mVp-p (negative resistance 75) (PAL)
* Sampling frequency: 13.5 MHz
* S/N ratio: 50 dB or greater
Audio performance* Output level : 2.0 Vrms (negative resistance 10k:
1 kHz 0 dB playback
* Distortion : 0.1% or less (when playing 1 kHz 0 dB sine wave, using LPF)
* S/N ratio : 80 dB or greater (when playing 1 kHz 0dB sine wave, using LPF and A-Filter)
* Channel separation : 70 dB or greater (stereo, when playing 1 kHz 0 dB sine wave, using LPF
A-Filter)
* Frequency response (1 kHz base): Within 0 3 dB at 20 to 20 kHz
* : fs = 48/44.1 kHz
* Internal clock error: Within 60 seconds per month
* External dimensions: 220 mm (width) 44 mm (height) 270 mm (depth)
* Weight: DN-V750 : 2.0 kg (not including flash memory card) DN-V755 : 2.5 kg
* Power supply: AC adapter (SEA40N2-12.0) : Input AC 120230V, 50/60 Hz
* Power consumption: DC 12V 0.5A (DN-V750) / 1.0A (DN-V755)
Surrounding conditions * Operating temperature range : 5 to 40C (DN-V750) / 5 to 35C (DN-V755)
* Operating humidity range : 5 to 85%
* Storage temperature range : -20 to 60C (not including recording media)
* Storage humidity range : 5 to 90% (not including recording media)
