Edirol PCR-30 MIDI Keyboard Controller

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

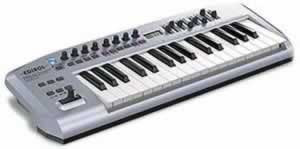

edirol pcr-30
Never before has there been a better compact keyboard for use with popular sequencers and software synthesizers. The PCR-30 takes MIDI control to a new level with unprecedented versatility.

• 32 full-sized, velocity sensitive keys.
• 8 assignable rotary knobs (cut off, resonance, pan, tempo, etc.).
• 8 assignable faders (volume, EFX send, etc.)
• 9 assignable buttons (program change, track mute, start, stop, etc.)
• 1 sustain pedal connection.
• 1 expression pedal connection MIDI in & MIDI out.
• Pitch & Modulation controls (Newly redesigned to be linearly controlled for more accurate performance) .
• 1 Preset Memory & 15 User Memory locations.
• USB Bus powered or AC adaptor.
• Template sheets for controls.

The PCR-30 can control a number of parameters not accessible from other controller keyboards at this price point; such as RPN, NRPN, SysEx.

The PCR-30 is fully compatible with all the latest operating systems including WinXP and Mac OSX. It is the ideal keyboard for use with Arturia Storm, SONAR, Cubase, Reason, FruityLoops, and most other popular sequencers and software synthesizers. As such it comes equipped with templates for these and other programs.

• Keyboard: 32 Velocity Sensitive Keys
• Controller:
Memory Button
MIDI Channel Button
Program Change Button
Edit Button
V-LINK Button
Octave Shift Button (+/-)
Transpose Button
Assignable Button (B1--6, L1--3)
Bender/Modulation Lever
Assignable Rotary Volume (R1--8)
Assignable Slider (S1--8)
Assignable Pedal (P1--2)
• Display:
7 segments, 3 characters (LED)
Power Indicator
• Connectors:
Hold Pedal Jack
Expression Pedal Jack
USB Jack
DC IN Jack
• Rear Panel: Power Switch (USB BUS/OFF/DC IN)
• Power Supply: DC 9 V (AC Adaptor) or USB Bus Powered
• Current Draw:
300 mA (AC Adaptor)
300 mA (USB Bus Power)
• Dimensions:
600 (W) x 232 (D) x 86.4 (H) mm
23-5/8 (W) x 9-3/16 (D) x 3-7/16 (H) in.
• Weight
2.4 kg / 5 lbs 5 oz (excluding AC adaptor)
• Accessories:
AC Adaptor (ACP Series)
USB Cable
Owner's Manual
Template Sheets (GM2/BLANK)
• Options:
Pedal Switch: DP-2/6
Expression Pedal: EV-5/7

• Macintosh
Operating System: MacOS 8.5, 8.6, 9.x, and OS X
Computer: USB ready Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 64 MB or more
OMS 2.3.3 or later. FreeMIDI 1.35 or later*
* For MacOS 8.5, 8.6, 9.x. Plug and play on MacOS X.

• Windows:
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a USB* port
CPU/clock: Pentium Processor 200 MHz or higher
Memory (RAM): 64 MB or more
USB Chipset: Intel's USB chipset is recommended

Additional Information

Product ConditionNew - On Clearance
