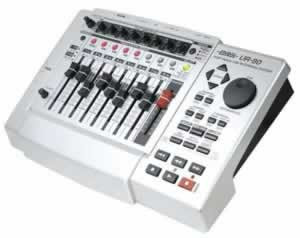

edirol ur-80
Integration of audio capture and highly customizable software control makes the UR-80 the new "must-have" addition to your project studio. The UR-80 now becomes the most productive device on your desktop, combining an audio interface, a fully assignable control surface, and a high quality General MIDI software synth.

The UR-80 has a vast amount of MIDI implementation that allows you complete control of your favorite sequencing programs of software synthesizers as well as phantom power support for use with high-end studio microphones. Full PC and Mac driver support, V-LINK support and a variety of input and output options ensure that this will be the device you rely on for years to come.

Main Features:
• 102 assignable parameters through 43 knobs, buttons and sliders on the control surface
• Up to 24Bit/96kHz processing
• 2 XLR/TRS combo jacks with phantom power
• Comes bundled with Edirol Hyper Canvas software synth
• ASIO 2, WDM, MacOS X compatible with low latency
• Control Map Editor
• V-LINK

Specifications:

• Controls
Input Volume 1, 2
Output Volume
Assign Button
Select Button
Memory Button
HQ/GM2 Button
V-Link Button
Rec Source Button
Input Monitor Button
Shift Button

• Assignable Controls (total 102):
• Track Pods: 24 (8 x 3 mode)
• Track Faders: 8
• Track Status Buttons: 32 (8x4 mode)
• Track Group Buttons: 4 (4 status)
• Master Fader: 1
• Time Dial: 1
• Cursor Buttons: 8 (4x on/off shift button)
• Function Buttons: 12 (6x on/off shift key)
• Transport Buttons: (Record, Play, Stop, Top, Rewind, Forward) 12 (6x on/off shift key)
• Preset Memory: 1
• User Memory: 7

Audio Capture Device
Number of Audio Record/Playback Channels
• Record: 2 channels
• Playback: 2 channels
• Full Duplex (Half Duplex for 96kHz setting)

• Signal Processing
A/D/A 24-bit (linear)
PC Interface 24-bit

• Sampling Frequency
Digital Output: 44.1/48/96 kHz
Digital Input: 32/44.1/48/96 kHz
Built-in real-time sample rate converter
A/D/A Conversion: 44.1/48/96 kHz

• Frequency Response
96 kHz: 20 Hz to 40 kHz (+0 db/-2 dB)
48 kHz: 20 Hz to 22 kHz (+0 db/-2 dB)
44.1 kHz: 20 Hz to 20 kHz (+0 db/-2 dB)

• Nominal Input Level (variable)
Input Jack 1, 2 (XLR type): -50 to -10 dBu
Input Jack 1, 2 (1/4 inch TRS phone type): -35 to +4 dBu
• Input Impedance
Input Jack 1, 2 (XLR type): 5 k ohms
Input Jack 1, 2 (1/4 inch TRS phone type, Lo-Z): 32 k ohms
Input Jack 2 (Hi-Z): 1 M ohms

• Nominal Output Level
Output Jack: 0 dBu

• Output Impedance
Output Jack: 1 k ohms
Headphones: 160 ohms

• Residual Noise Level (input terminated with 1 k ohms,
• MASTER VOLUME: max.,
• INPUT SENS = min.,
• INPUT MONITOR = min., IHF-A, typ.)
• Output Jack: -90 dBu or less

• Interface
USB
Digital input/output Coaxial type, Optical type (conforms to S/P DIF)

• Connectors
Input Jack 1, 2 (XLR type (phantom power), 1/4 inch TRS phone type)

• Digital In Connectors (Coaxial type, Optical type)

• Digital Out Connectors (Coaxial type, Optical type)

• Headphones Jack (Stereo 1/4 inch phone type)
Output Jack L/R (RCA phono type)

• Power Supply
AC adaptor
Current Draw: 1000 mA

• Dimensions
378.5(W) x 238.5 (D) x 83.8 (H) mm
14-15/16(W) x 9-7/16(D) x 3-5/16 (H) inches
• Weight: 1.65Kg / 3lb 11 oz

• Accessories
Startup Manual
Owner's Manual
USB cable
AC adaptor
Template Sheets
Template Labels
CD-ROM

EDIROL designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).
