Edirol V1 4 Ch Video Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

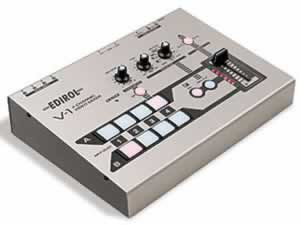

edirol v1
With 12 large, back-lit buttons & three knob controls, the V-1 offers all the essential functions & features required for live video mixing without a lot of the extra effects of the V-4.

The V-1 brings video mixing to an entirely new customer...Anyone. The V-1 is the simplest way to mix between up to 4 video sources.
The V-1 makes the entire process of mixing multiple video sources simple by giving every function it's own button or know. There are no menus to deal with, making the V-1 extraordinarily simple. With it, you can cut to different video sources, mix between them, wipe from one source to the next, & even use picture in picture. But the simple control of the V-1 is not the only benefit. The V-1 offers very clean, high-quality video processing & offers both composite & S-Video in & out for professional results whether in use in a small room, small veniew or large arena.

The V-1 includes V-LINK, which allows the user to control it directly from any V-LINK compatible MIDI device, making the integration of Video into your music performance easy & rich & completely controllable from a keyboard or groovebox.

The V-1, bringing video into the hands of the masses.


Main Features

Switching of multiple video images and composite imaging using multiple video sources.
The V-1 can smoothly switch multiple video cameras (Cut, Mix, Wipe, PinP) or can mix 2 different images using the fader.

Superimpose
Using the V-1 in conjunction with the P-1 (Title Player), you can insert pictures or titles as well as switching video images. In addition, the V-1 is equipped with an independent channel (Channel 4) that enables composite titling through the video out of your PC.

Hi quality and stable video image
Completely digital internal processing offers very high quality video images equivalent of that of DV quality. The V-1 is equipped with 2 individual frame synchronizers to enable smooth, stable, and noiseless video switching video image.

Easy operation, portability, and affordable price
The V-1 is simple enough for anyone to use without any background in video mixing. It also has large back-light controls for easy use in low-light environments.

V-LINK and MIDI
Like its big brother's the V-4 & LVS-400, the V-1 can be controlled through V-Link by any V-Link capable MIDI device, such as the Roland MC-909 or Edirol PCR-30.


SPECIFICAITIONS:
• Video Format: NTSC/PAL ITU601
• Video Sampling Rate: 13.5MHz 4:2:2(Y:B-Y:R-Y) 8-bit
• Video Input:
Composite
RCA pin type connector x 4ch 1Vp-p, 75 ohms
• S-Video: 4 pin Mini DIN type x 4ch
• Brightness: 1Vp-p, 75 ohms
• Color:
0.286mVp-p, 75ohms(NTSC)
0.3mVp-p, 75ohms(PAL)

Note: S-Video has priority

• Video Out:
Composite
RCA pin type connector x 2ch 1Vp-p, 75 ohms
• S-Video: 4 pin Mini DIN type x 1
• Brightness: 1Vp-p, 75 ohms
• Color:
0.286mVp-p, 75ohms(NTSC)
0.3mVp-p, 75ohms(PAL)
• Controls:
MIDI IN, MIDI OUT
5 pin DIN Type
• Switches/Buttons:
Video Input Select Button 1-4 (A channel)
Video Input Select Button 1-4 (B channel)
Effect Button (Mix, Wipe/P in P)
Wipe Switch/Mix Knob
Wipe Vertical (2 types),
Wipe Horizontal(2 types).
PinP (4 types)
Superimpose Button (Channel 4 only)
Key Level Adjust Knob
Video Fader
Output On/Off Switch
• AC adaptor: (100V-240VAC, 50-60Hz)
• Power Consumption: 1500mA
• Dimensions: 282mm(W)x209(D)x77mm(H)
