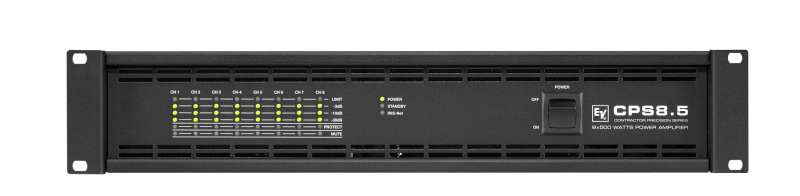

The Electro-Voice CPS8.5 amplifier offers eight independent Class-D Variable Load Drive (VLD) amplifier blocks, each one capable of delivering up to 500 Watts into Low-Z or High-Z loads. Per default, each channel can be configured individually for max. power output into either 2 , 4 , 70V- or 100Vnetworks without involvement of any output transformers.
Being designed for professional audio installation market, special care was taken for long term cost of ownership parameters: In addition to remarkably low current consumption and heat dissipation, the CPS8.5 provides remote standby switching with just 5 Watts consumption in standby mode. An optional remote control module RCM-810 provides control and supervision features via IRIS-Net, including monitoring of amplifier status and real time load supervision.
In addition, via RCM-810 the Variable Load Drive characteristics can be set for max. power output into any load between 2 O and 10 O, in steps of 0.1 O.
VIDEO
• Eight channels in one compact rack-efficient unit
• 500 W per channel
• 70/100 V operation for distributed systems
• Class-D design for optimum efficiency
• Slot for optional RCM-810 module, allowing IRIS-Net control and monitoring
• IRIS-Net selection of each channel's impedance (2-10 O in 0.1 O steps)
• Rear-mounted attenuators
• Switchable 50 Hz high-pass filter (Hi-Z mode)
• Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current
• Phoenix-type input and output connections
• Remote power-on/off contact
• Programmable power-on delay settings
• Front-to-rear fans
Dimensions: 3.47" x 19" x 16.59" (88.1mm x 482.6mm x 421.5mm)
Weight: 30.64lbs (13.9kg)
