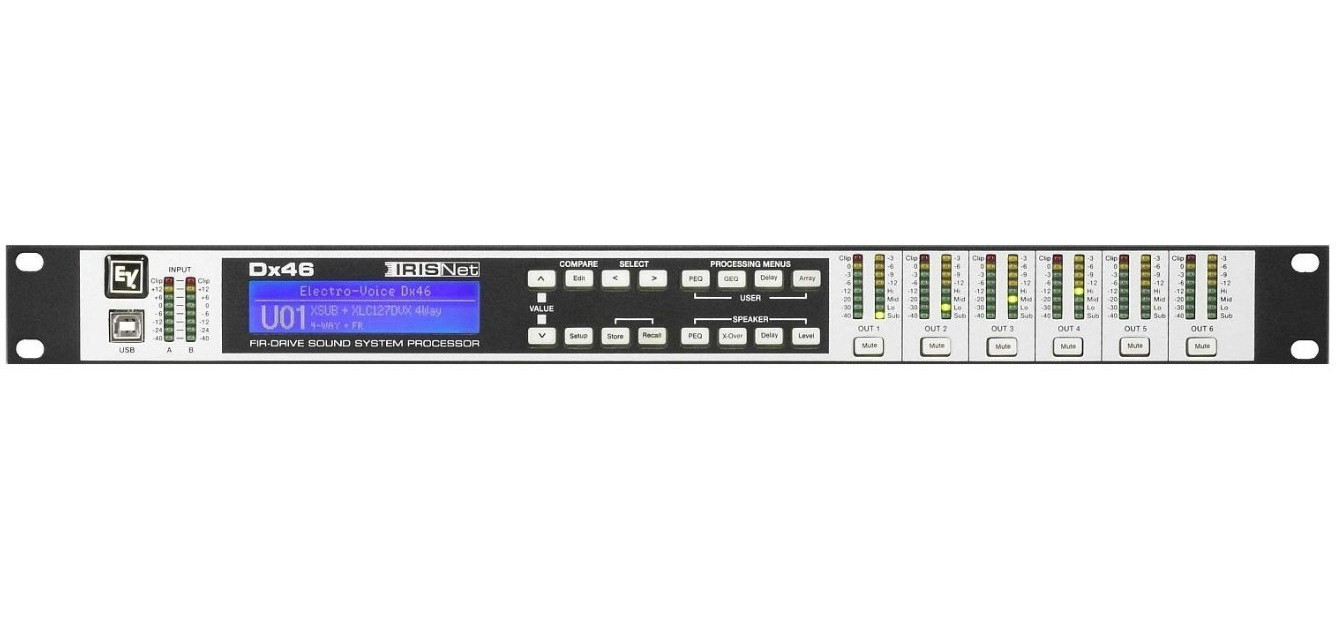

ElectroVoice DX46 2x6 FIR Drive Speaker Processor

The Dx46 provides a USB and an Ethernet interface with an integrated switch for connectivity. IRIS-Net allows complete control, configuration, and supervision through standard or customized interfaces; IRIS-Net allows the ultimate in flexibility for controlling what you want to control-how you want to control it.

FEATURES:
• Designed for Cinema, Club Sound, Concert Sound, House of Worship, Performance & Sports Venues, Pro Music, Stadium Systems, and other applications.
• 2x6 FIR-Drive Loudspeaker Processor
• Analog and AES/EBU Inputs
• Full IRIS-Net Control and Configuration
• Ethernet and USB Data Interfaces
• Full Loudspeaker Protection Package, Including PA Limiters and TEMP Limiters
• Dedicated Array EQ and Delay Sections For Advanced Applications
• -6 dB Switchable Analog Pad Inserted Before A/D Converters On Inputs
• 4 Separate Delay Sections
• 5 Contact Closure Inputs
• 60 Factory Presets
• 30 User Presets
• Unique Edit/Compare mode for audible parameter adjustment

SPECIFICATIONS:
• A/D Conversion 24-Bit Delta Sigma
• Analog Inputs 2
• Analog Outputs 6
• Control Protocol USB, Ethernet
• D/A Conversion 24-Bit Delta Sigma
• Data Format 24-Bit
• Digital Inputs 1 XLR AES/EBU (2Ch)
• Dynamic Range 116 dB (A-weighted)
• Frequency Response 20 Hz - 40 kHz
• Input Impedance (Balanced) 10 kO
• Internal Processing 48-Bit Double Precision
• Maximum Input Voltage 8.7 V / +21 dBu (Without -6 dB Analog Pad Engaged)
• Maximum Output Voltage 8.7 V / +21 dBu
• Nominal Input Voltage 1.55V/+ 6 dBu
• Nominal Output Voltage 1.55V/+ 6 dBu
• Output Impedance (Balanced) 50 O
• Sample Rate 48 kHz
• THD+N <0,002% (band limited 20 Hz to 20 kHz)
• Height 1RU 1.74" (44.25 mm)
• Width 7.19" (182.6 mm)
• Depth 14" (355.6 mm)
• Weight Net 10.14 lbs (4.6 kg)
