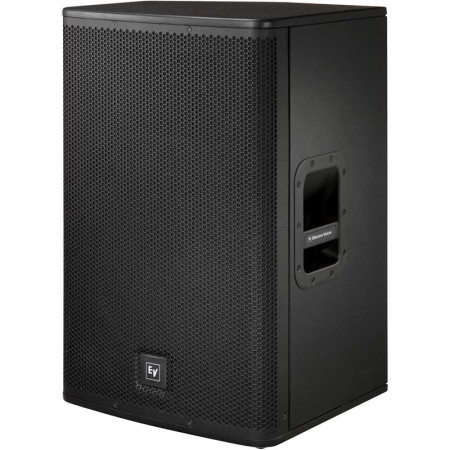

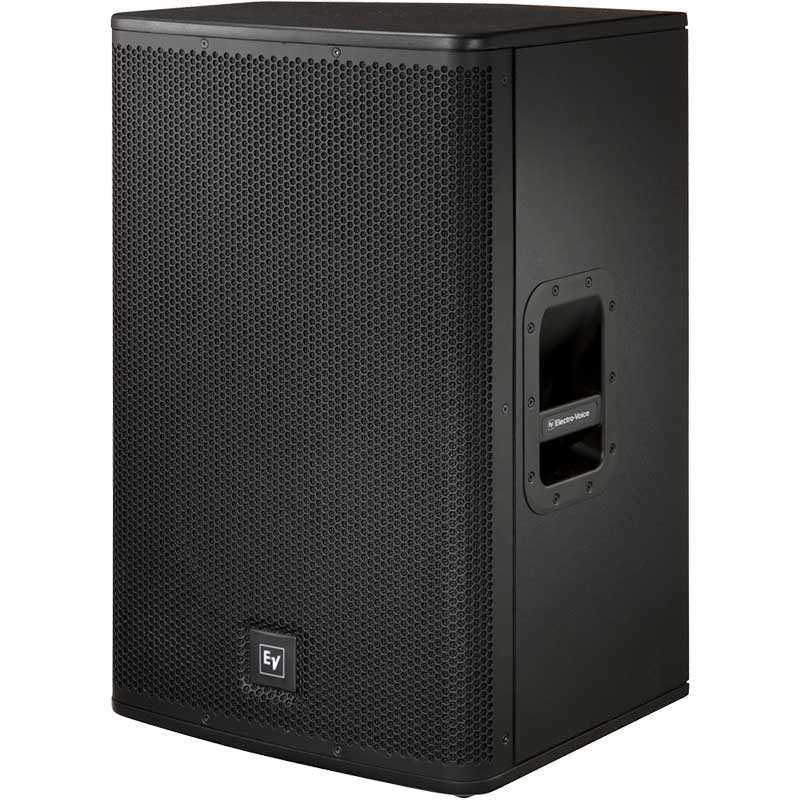

A powerful step up from the ELX112, the passive ELX115 features a 15" woofer that delivers extended low-frequency response for bigger sound in larger rooms.
FEATURES INCLUDE:• Designed for House of Worship, Pro Music, and other applications.
• 15" woofer and 1.5" high-frequency titanium compression driver
• 50 Hz - 20 kHz frequency range 95 dB SPL sensitivity; 134 dB max SPL
• 400 W continuous and 1600 W peak power handling
• Rugged wood cabinet pole-mounts or stacks with Live X Subwoofers
SPECIFICATIONS INCLUDE:• Axial Sensitivity 95 dB
• Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB) 75 Hz - 18 k Hz
• Frequency Response (-10 dB) 50 Hz - 20 k Hz
• Recommended High-Pass Frequency 40 Hz
• Max. SPL/1m (calc) 134 dB
• Coverage
(Nominal -6 dB) H 90
• Coverage
(Nominal -6 dB) V 50

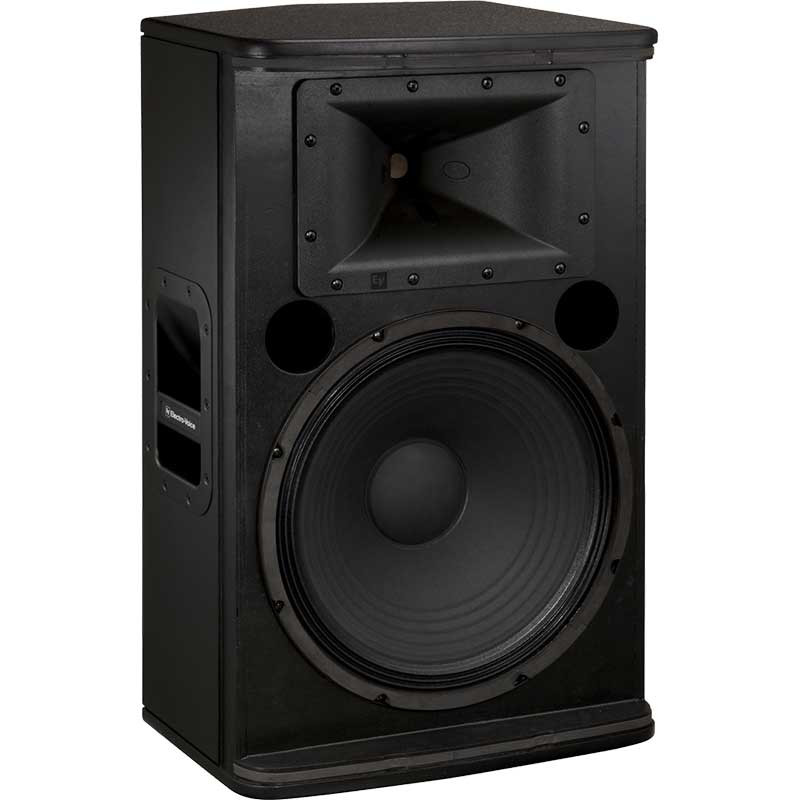

• LF Transducer (1) EVS-15K, 381mm (15") Woofer
• HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency 1.7 k Hz
• Nominal Impedance (Passive) 8 O
• Minimum Impedance 7.4 O
• Connector Type Dual NL4

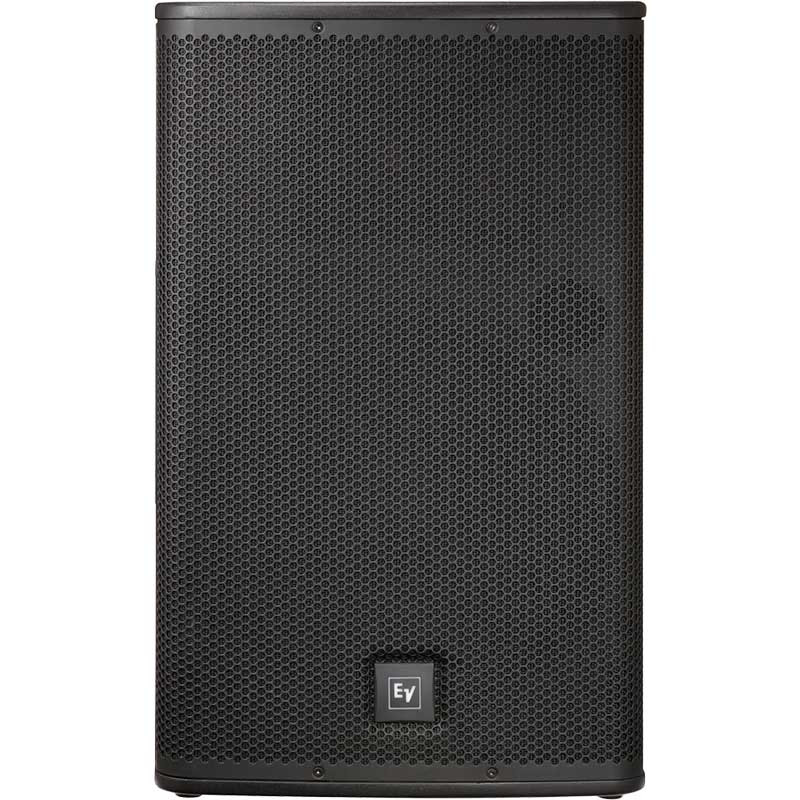

• Grill 18GA Steel with Black Powdercoat
• Height 708 mm (27.87")
• Width 432 mm (17.01")
• Depth 382 mm (15.04")
• Weight Net 23 kg (50.71 lbs)
• Shipping Weight 27.8 kg (61.29 lbs)
