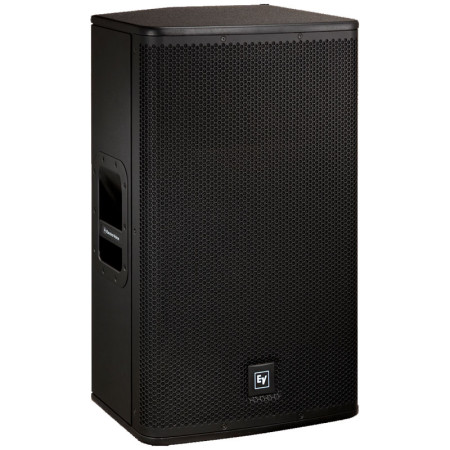

A powerful step up from the ELX112P, the 15" woofer and 1000 W amplifier in the ELX115P deliver extended lower frequencies and room-filling volume.
VIDEO
FEATURES INCLUDE: • Designed for House of Worship, Pro Music, and other applications.
• 15" woofer and 1.5" high-frequency titanium compression driver
• 44 Hz - 20 kHz frequency range; 134 dB max SPL
• 1000 W Class D lightweight amplifier runs cool without fans
• Easy to connect and control with versatile input and output options
• Rugged wood cabinet pole mounts or stacks with Live X Subwoofers
SPECIFICATIONS: • Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB) 56 Hz - 18 k Hz
• Frequency Response (-10 dB) 44 Hz - 20 k Hz
• Max. SPL/1m (calc) 134 dB
• Coverage
(Nominal -6 dB) H 90
• Coverage
(Nominal -6 dB) V 50
• LF Transducer (1) EVS-15K, 381mm (15") Woofer
• HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency 1.7 k Hz

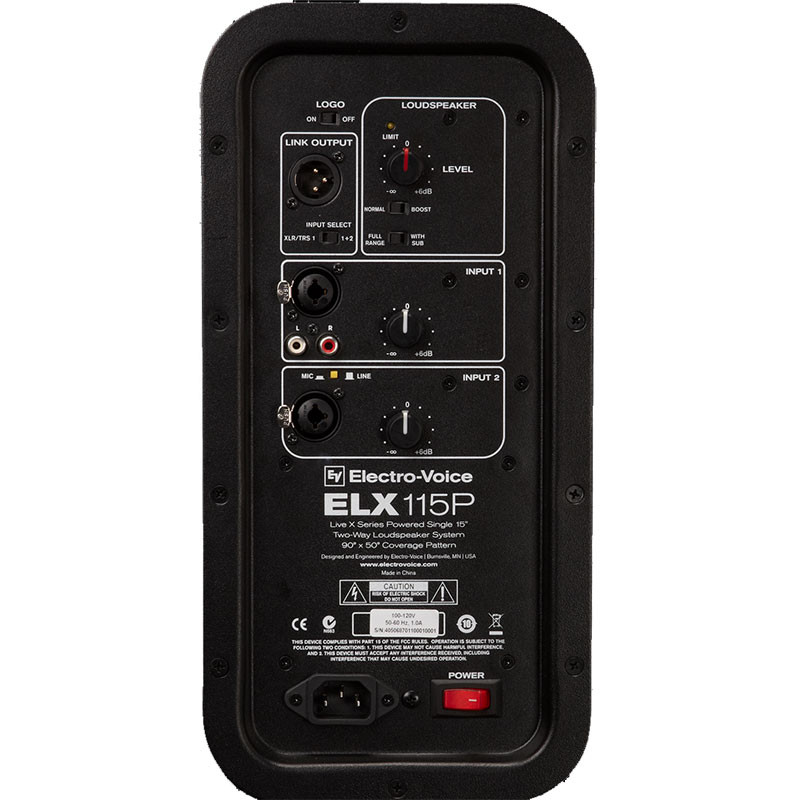

• Connector Type (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output

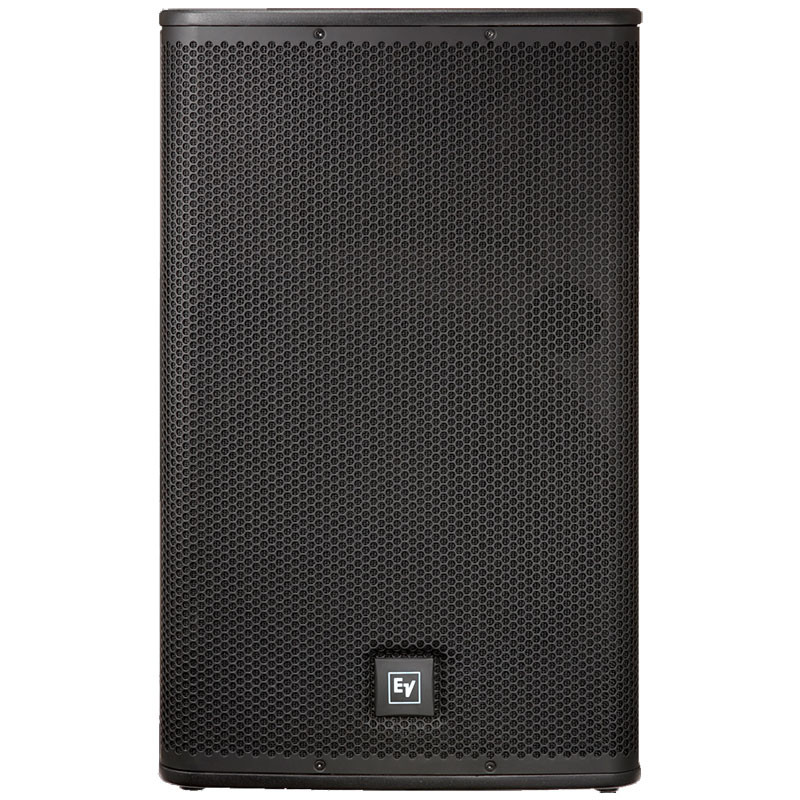

• Grill 18GA Steel with Black Powdercoat
• Height 708 mm (27.87")
• Width 432 mm (17.01")
• Depth 382 mm (15.04")
• Weight Net 24.3 kg (53.57 lbs)
• Shipping Weight 29.5 kg (65.04 lbs)
