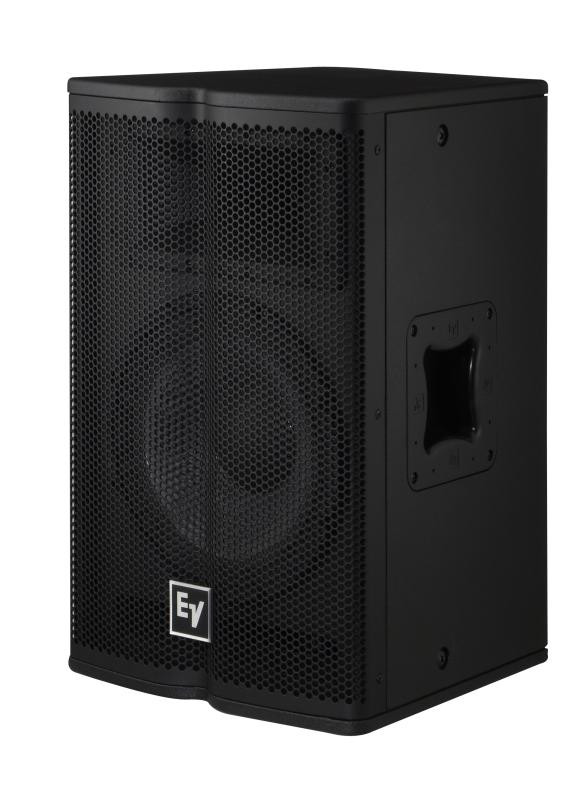

ElectroVoice EV TX1122 Tour-X 12" 2-way Passive Speaker

Tour X embodies the same Electro-Voice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.

A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:

• Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity
• Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance
• Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes
• All new proprietary EV designed ergonomic handles and angled input panels
• Floor monitors with patent pending SST (Signal Synchronized Transducers) for near perfect driver phase summation

Specifications
• Frequency Response (-3dB) 60 - 20000 Hz
• Frequency Response (-10dB) 45 - 20000 Hz
• Recommended High-Pass Frequency 45 Hz
• Sensitivity 1W/1m 97 dB
• Max. SPL / 1m (calc) 130 dB
• Coverage (nominal -6dB) H 90
• Coverage (nominal -6dB) V 50
• Rotatable Horn No
• System Power Handling (continuous/program/peak) 500/1000/2000 Watts
• LF Transducer SMX2120
• HF Transducer DH3
• Crossover Frequency 1750 Hz
• Nominal Impedance (Passive) 8 Ohms
• Minimum Impedance 5.4 Ohms
• Enclosure Material Plywood and MDF with EVCOAT
• Suspension (6) 3/8-inch threaded inserts
• Color Black
• Flying Yes
• Input Connections Parallel Neutrik NL4
• Internal Crossover Yes
• Speaker Type Fullrange
• Weight Net 20.2 kg ( 44.53 lbs )
• Dimensions (HxWxD) 616 x 382 x 380 mm
• (24.25" x 15.04" x 14.96")
