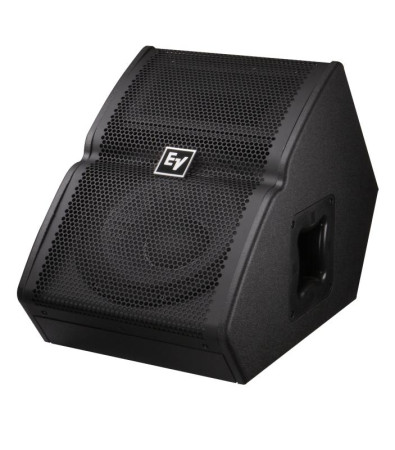

ElectroVoice EV TX1122FM 12 Floor Monitor TOUR-X (Open Box)

electro-voice tx1122fm  *openbox
electro-voice tx1122fm  *openbox ElectroVoice EV TX1122FM 12 Floor Monitor TOUR-X (Open Box)
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
An undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM will redefine the world of stage monitors for years to come. Harkening back to the globally accepted EV FM series, the TX1122FM and TX1152FM take that legacy and advance it with a healthy dose of innovative Electro-Voice engineering. The most notable innovation is the split baffle design with patent pending SST (Signal Synchronized Transducers) technology. A split baffle creates two very important benefits: moving the acoustic origins of the compression driver and woofer close together, and the split in the baffle becomes the port, allowing the entire enclosure to become much more compact. The result is "signal synchronized" with near perfect phase summation! The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels make the TourX FM models easy to transport and set up in critical stage monitoring applications.

Frequency Response (-3dB) 70 - 20000 Hz
Frequency Response (-10dB) 55 - 20000 Hz
Recommended High-Pass Frequency 60 Hz
Sensitivity 1W/1m 99 dB
Max. SPL / 1m (calc) 132 dB
Coverage (nominal -6dB) H 90
Coverage (nominal -6dB) V 50
Rotatable Horn No
System Power Handling (continuous/program/peak) 500/1000/2000 Watts
LF Transducer SMX2121
HF Transducer DH3
Crossover Frequency 1600 Hz
Nominal Impedance (Passive) 8 Ohms
Minimum Impedance 6.4 Ohms
Enclosure Material Plywood and MDF with EVCOAT
Color Black
Flying No
Input Connections Parallel Neutrik NL4
Internal Crossover Yes
Speaker Type Fullrange
Weight Net 19.8 kg ( 43.65 lbs )
Dimensions (HxWxD) 440 x 364 x 573 mm
(17.32" x 14.33" x 22.56")

Additional Information

Product ConditionOpen Box
