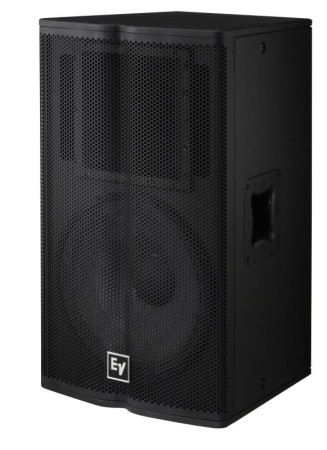

The Electro-Voice TX1152 fits the bill when the low frequency extension of a 15-inch woofer is required, along with outstanding pattern control from the rotate-able, larger 60 x 40 horn. Utilizing the incredibly low distortion SMX2150 15-inch woofer, the TX1152 boasts specs normally associated with loudspeakers priced well over twice as much. The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, integrated pole mount and (6) 3/8-inch threaded suspension inserts make the TX1152 easy to transport and employ in a variety of applications.
Tour X embodies the same Electro-Voice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:* Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity * Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance * Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes * All new proprietary EV designed ergonomic handles and angled input panels * Floor monitors with patent pending SST (Signal Synchronized Transducers) for near perfect driver phase summation
SpecificationsFrequency Response (-3dB) 55 - 20000 Hz Frequency Response (-10dB) 40 - 20000 Hz Recommended High-Pass Frequency 40 Hz Sensitivity 1W/1m 100 dB Max. SPL / 1m (calc) 133 dB Coverage (nominal -6dB) H 60 Coverage (nominal -6dB) V 40 Rotatable Horn Yes System Power Handling (continuous/program/peak) 500/1000/2000 Watts LF Transducer SMX2151 HF Transducer DH3 Crossover Frequency 1650 Hz Nominal Impedance (Passive) 8 Ohms Minimum Impedance 5.6 Ohms Enclosure Material Plywood and MDF with EVCOAT Suspension (6) 3/8-inch threaded inserts Color Black Flying Yes Input Connections Parallel Neutrik NL4 Internal Crossover Yes Speaker Type Fullrange Weight Net 27.8 kg ( 61.29 lbs ) Dimensions (HxWxD) 776 x 446 x 446 mm(30.55" x 17.56" x 17.56")
