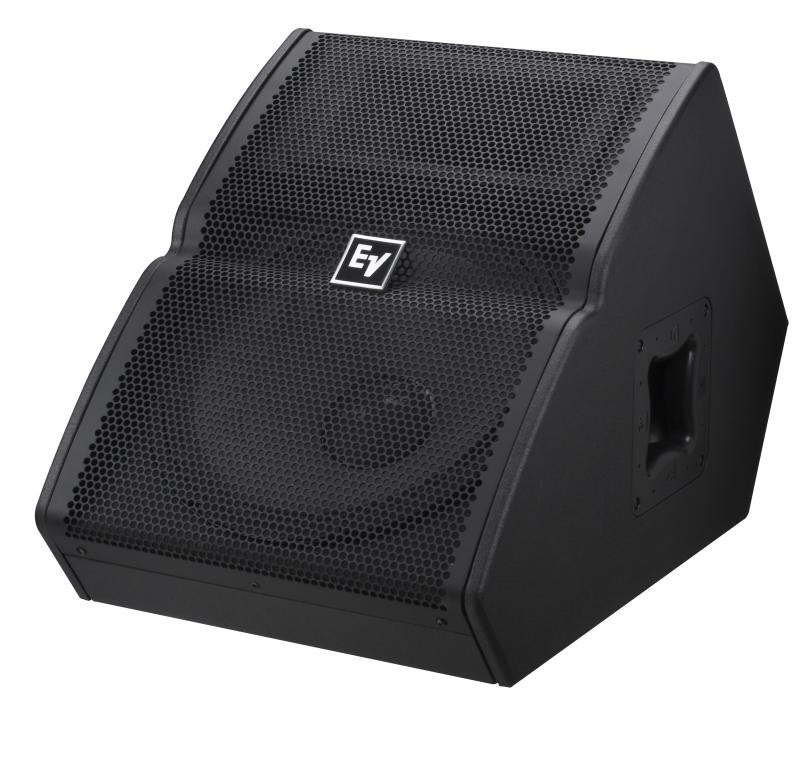

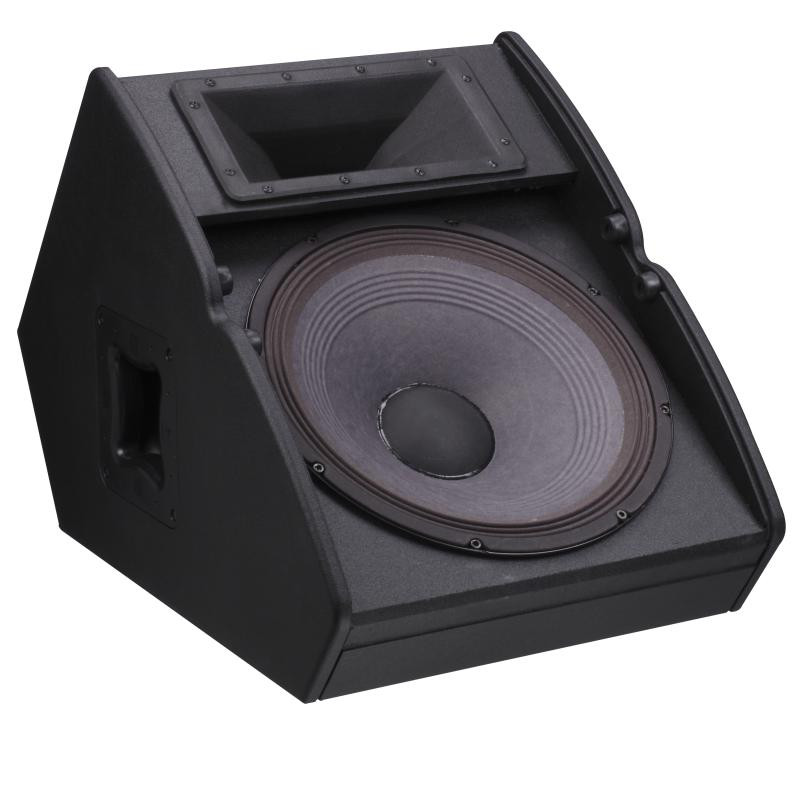

An undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM will redefine the world of stage monitors for years to come. Harkening back to the globally accepted EV FM series, the TX1122FM and TX1152FM take that legacy and advance it with a healthy dose of innovative Electro-Voice engineering. The most notable innovation is the split baffle design with patent pending SST (Signal Synchronized Transducers) technology. A split baffle creates two very important benefits: moving the acoustic origins of the compression driver and woofer close together, and the split in the baffle becomes the port, allowing the entire enclosure to become much more compact. The result is "signal synchronized" with near perfect phase summation! The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels make the TourX FM models easy to transport and set up in critical stage monitoring applications.
Tour X embodies the same Electro-Voice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:* Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity * Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance * Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes * All new proprietary EV designed ergonomic handles and angled input panels * Floor monitors with patent pending SST (Signal Synchronized Transducers) for near perfect driver phase summation
SpecificationsFrequency Response (-3dB) 65 - 20000 Hz Frequency Response (-10dB) 45 - 20000 Hz Recommended High-Pass Frequency 45 Hz Sensitivity 1W/1m 100 dB Max. SPL / 1m (calc) 133 dB Coverage (nominal -6dB) H 90 Coverage (nominal -6dB) V 50 Rotatable Horn No System Power Handling (continuous/program/peak) 500/1000/2000 Watts LF Transducer SMX2151 HF Transducer DH3 Crossover Frequency 1750 Hz Nominal Impedance (Passive) 8 Ohms Minimum Impedance 6.2 Ohms Enclosure Material Plywood and MDF with EVCOAT Color Black Flying No Input Connections Parallel Neutrik NL4 Internal Crossover Yes Speaker Type Fullrange Weight Net 23.5 kg ( 51.81 lbs ) Dimensions (HxWxD) 475 x 439 x 655 mm(18.7" x 17.28" x 25.79")
