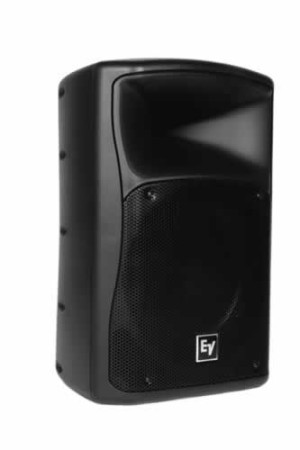

Zx4 is designed mainly for portable applications such as performing artist, musicians, and small bands. And with an integral pole-mount, the Zx4 is ready for any main mix application.
FEATURES:• Designed for House of Worship, Pro Music, and other applications.
• 15-2-Way with EVS15SF woofer
• DH3 1,25" titanium HF driver
• 400 Watt cont. 1600W Peak
• High sensitivity (100dB)
• Adjustable monitor angles 45 and 55
• Large Format 90 x 50 EV horn
SPECIFICATIONS:• Chassis Size 381 mm (15")
• Color Black
• Input Connections Parallel Neutrik NL4
• Speaker Type Fullrange
• Speaker Type Mid-High
• Speaker Type Two-Way
• Speaker Type Wedges
• Frequency Response (-3 dB) 60 - 20000 Hz
• Frequency Response (-10 dB) 42 - 20000 Hz
• Internal Crossover Yes
• Sensitivity 1 W/1 m 100 dB
• Max. SPL/1m (calc) 132 dB
• Coverage
(Nominal -6 dB) H 90
• Coverage
(Nominal -6 dB) V 50
• System Power Handling (Continuous/Program/Peak) 400 Watts
• LF Transducer EVS15SF
• HF Transducer DH3
• Crossover Frequency 1500 Hz
• Nominal Impedance (Passive) 8 O
• Minimum Impedance 6.5 O
• Flying Yes
• Outdoor No
• Height 686 mm (27.01")
• Width 445 mm (17.52")
• Depth 406 mm (15.98")
• Weight Net 20.2 kg (44.53 lbs)
