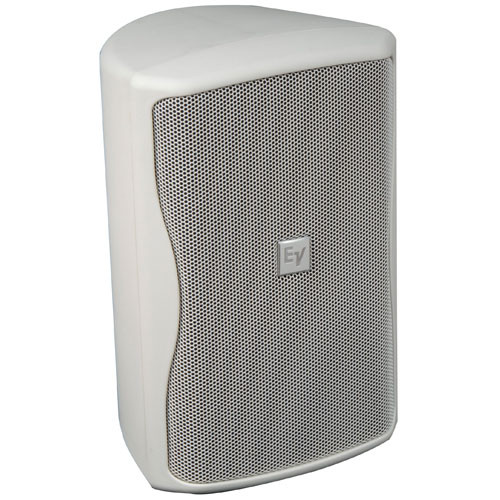

An incredibly versatile solution for mobile DJ and small-venue sound reinforcement, ZXA1 features the latest professional-grade Electro-Voice drivers and a powerful 800-W amplifier, all presented in a stylish, super-durable ABS enclosure to create a lightweight loudspeaker that looks as good as it sounds. Whether used as a standalone loudspeaker or with a sub, turn up a ZXA1 and your eyes won't believe your ears: small-format never sounded better.
FEATURES:• Designed for Club Sound, Concert Sound, House of Worship, and other applications.
• Integrated 800 watt power amplifier
• Biamplified design with transducer protection
• EV8L 8" high-output LF transducer
• DH2005 1" exit true compression driver
• 90 x 50 coverage pattern
• Rotatable horn design
• 123 dB maximum SPL
• Selectable high-pass filter for use with subwoofers
• Line and microphone inputs
• Integral monitor angle on enclosure
• Built-in pole mount
• Lightweight (< 20 lbs) with integral handle for easy carrying
SPECIFICATIONS INCLUDE:• Input Connections XLR and TRS Combo; XLR with Independent Gain
• Power Requirement 120V: 95V - 132V, 50 - 60 Hz, 0.6A; 230V:190V - 264V, 50 - 60 Hz, 0.4A
• Frequency Response (-3 dB) 60 Hz - 20 kHz Hz Full Range Mode
• Frequency Response (-10 dB) 48 Hz - 20 kHz Hz Full Range Mode
• Recommended High-Pass Frequency 100 Hz User Selectable
Max. SPL/1m (calc) 123 dB
• LF Transducer EV8L, 203mm (8 in) Driver
• HF Transducer DH2005, 25mm (1 in) Exit Compression Driver
• Crossover Frequency 1800 Hz
• Enclosure Material High Impact Polystyrene
• Grill Polyester Powder Coated, 18GA Galvanized Steel
• Height 457 mm (17.99")
• Width 282 mm (11.1")
• Depth 264 mm (10.39")
• Weight Net 8.62 kg (19 lbs)
• Shipping Weight 10.3 kg (22.7 lbs)
