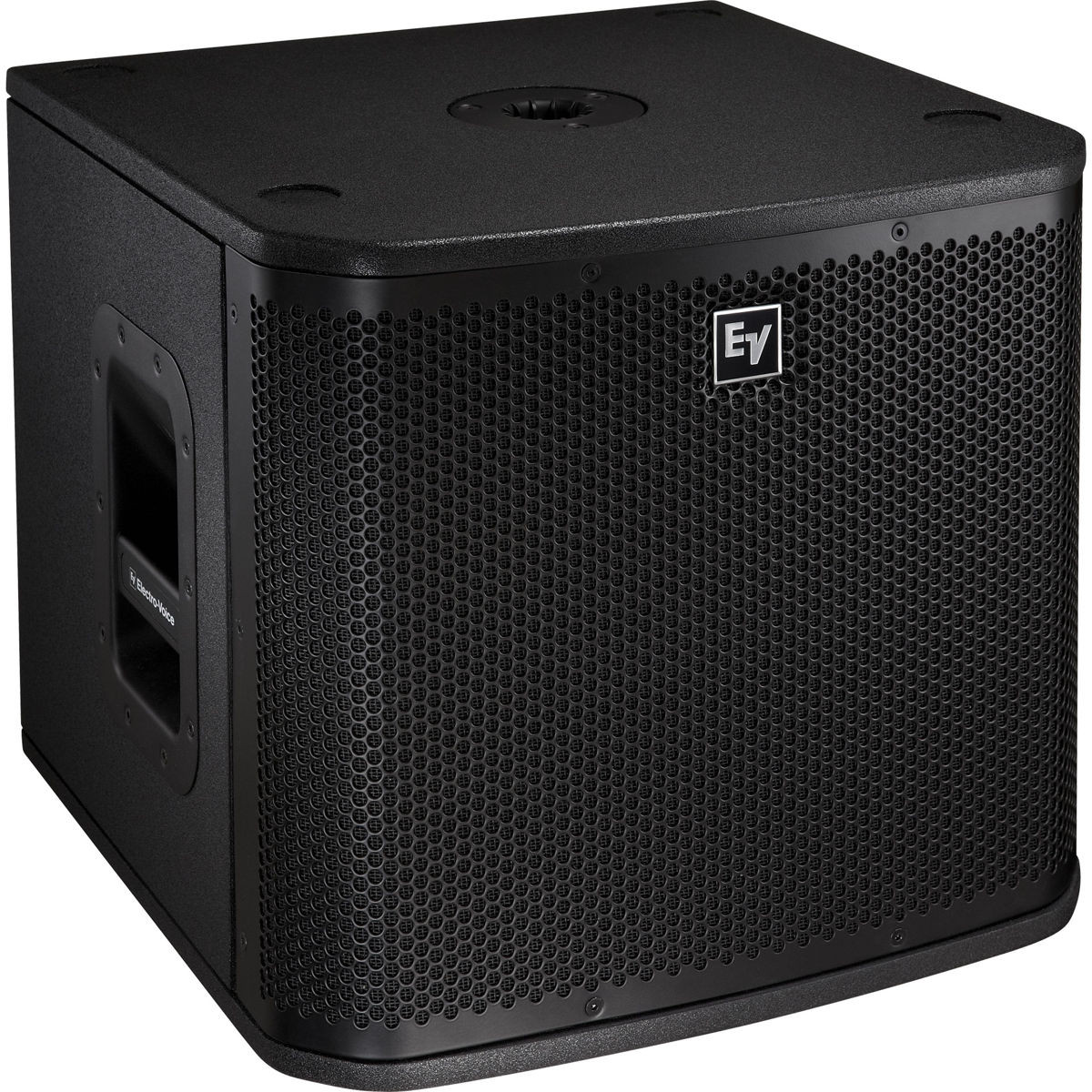

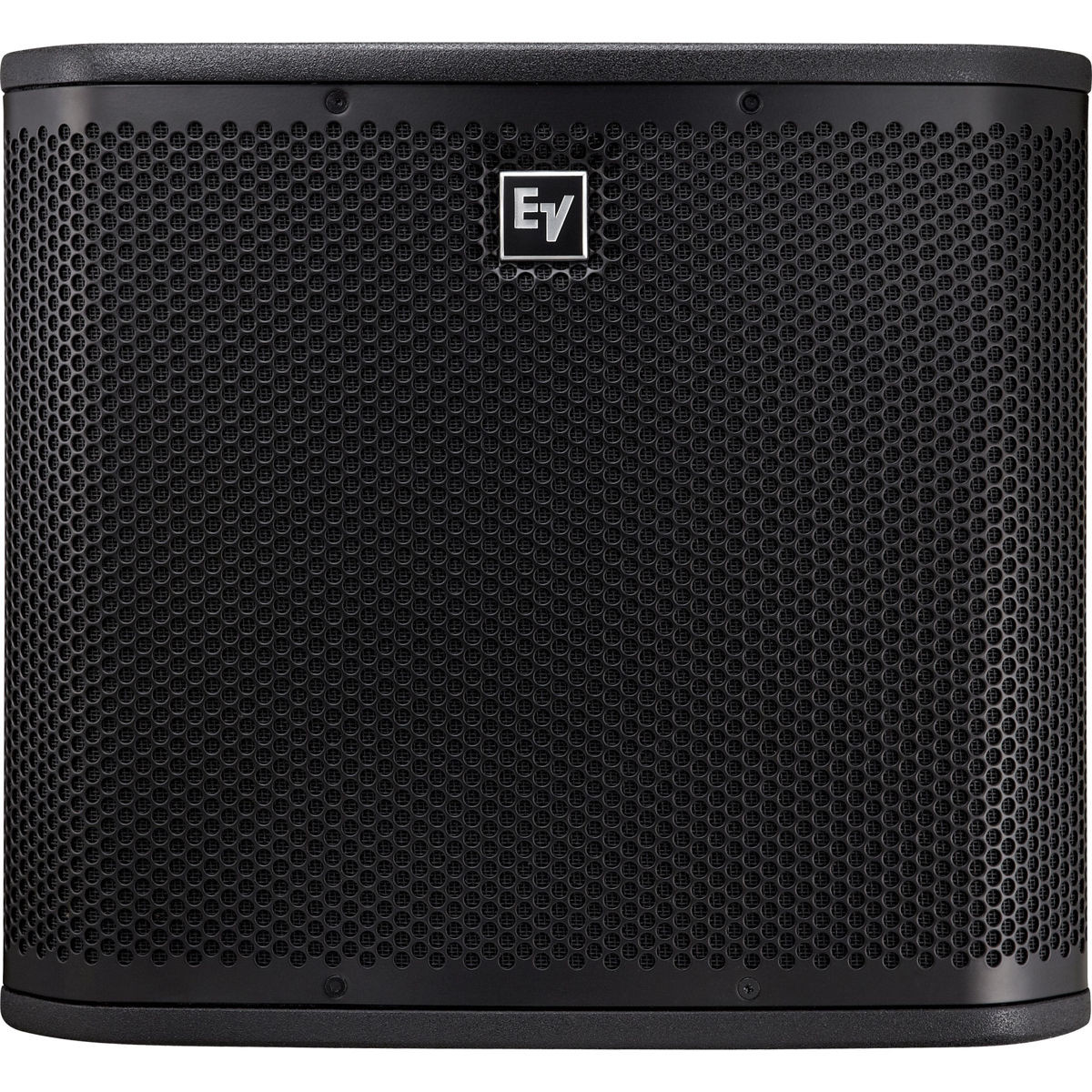

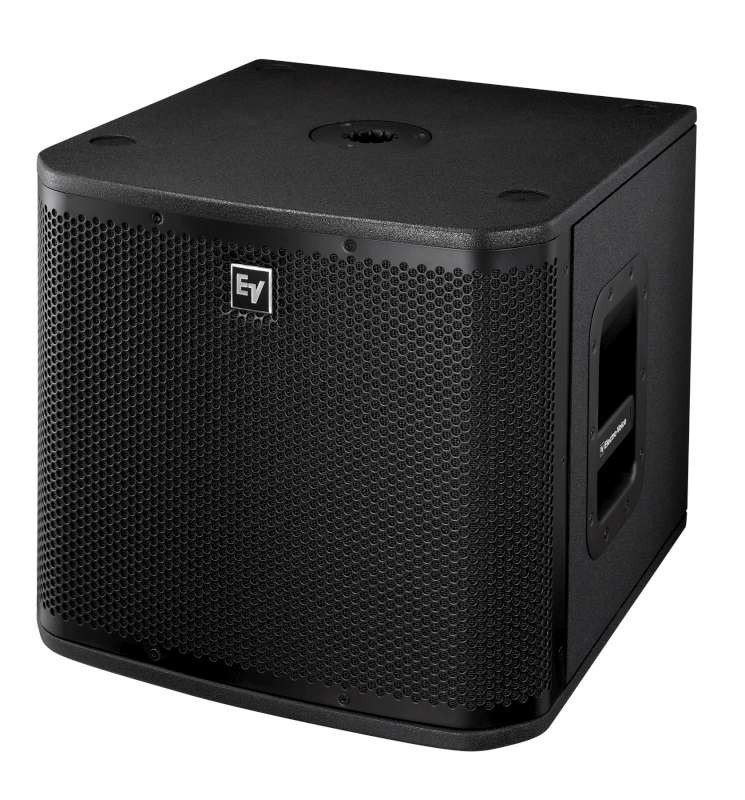

Extending the ZXA1's size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700-W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.
ZXA1-SUB FEATURES:
• Integrated 700-W Class-D amplifier
• EVS-12S 12-inch woofer
• 126 dB maximum SPL

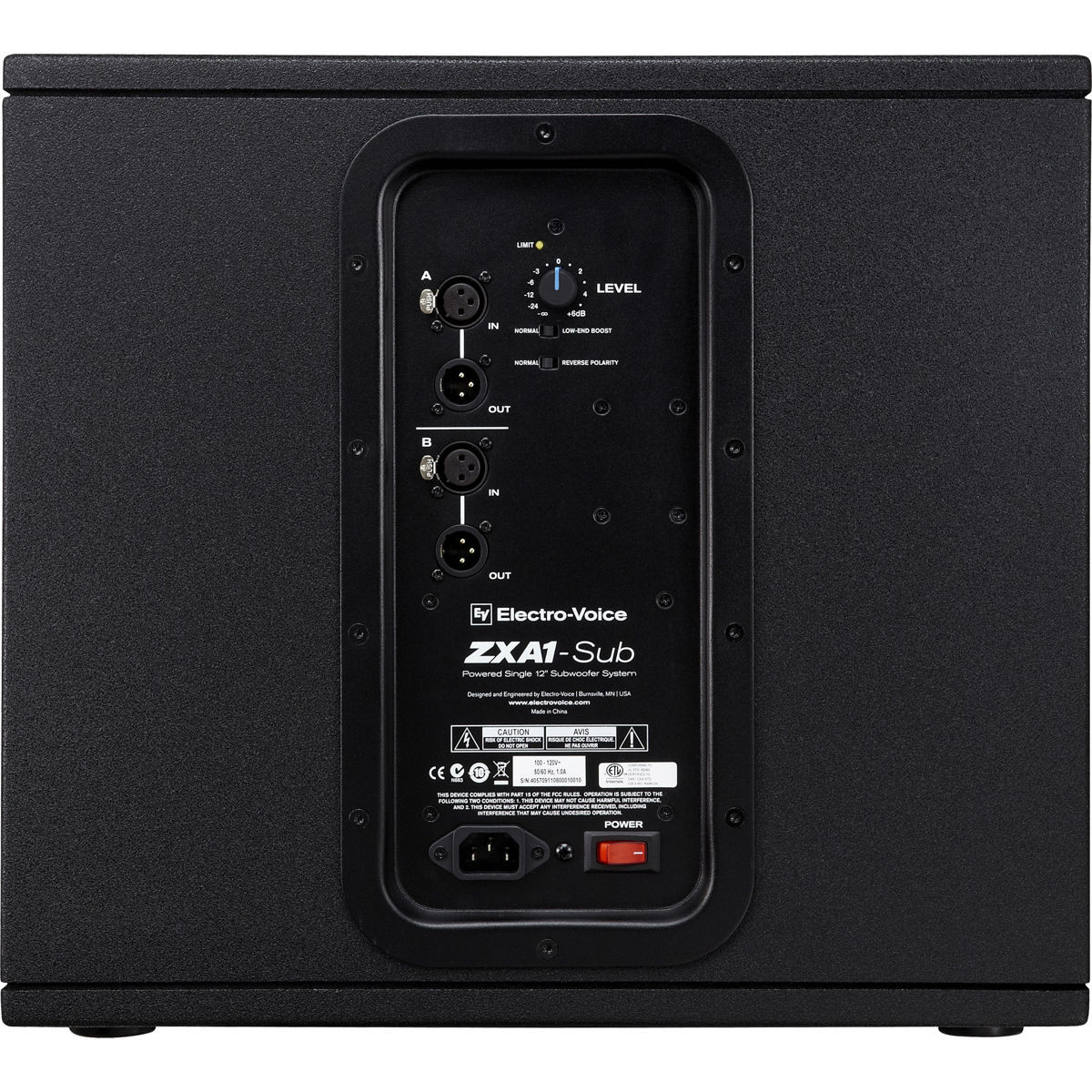

• Dual XLR stereo inputs and outputs

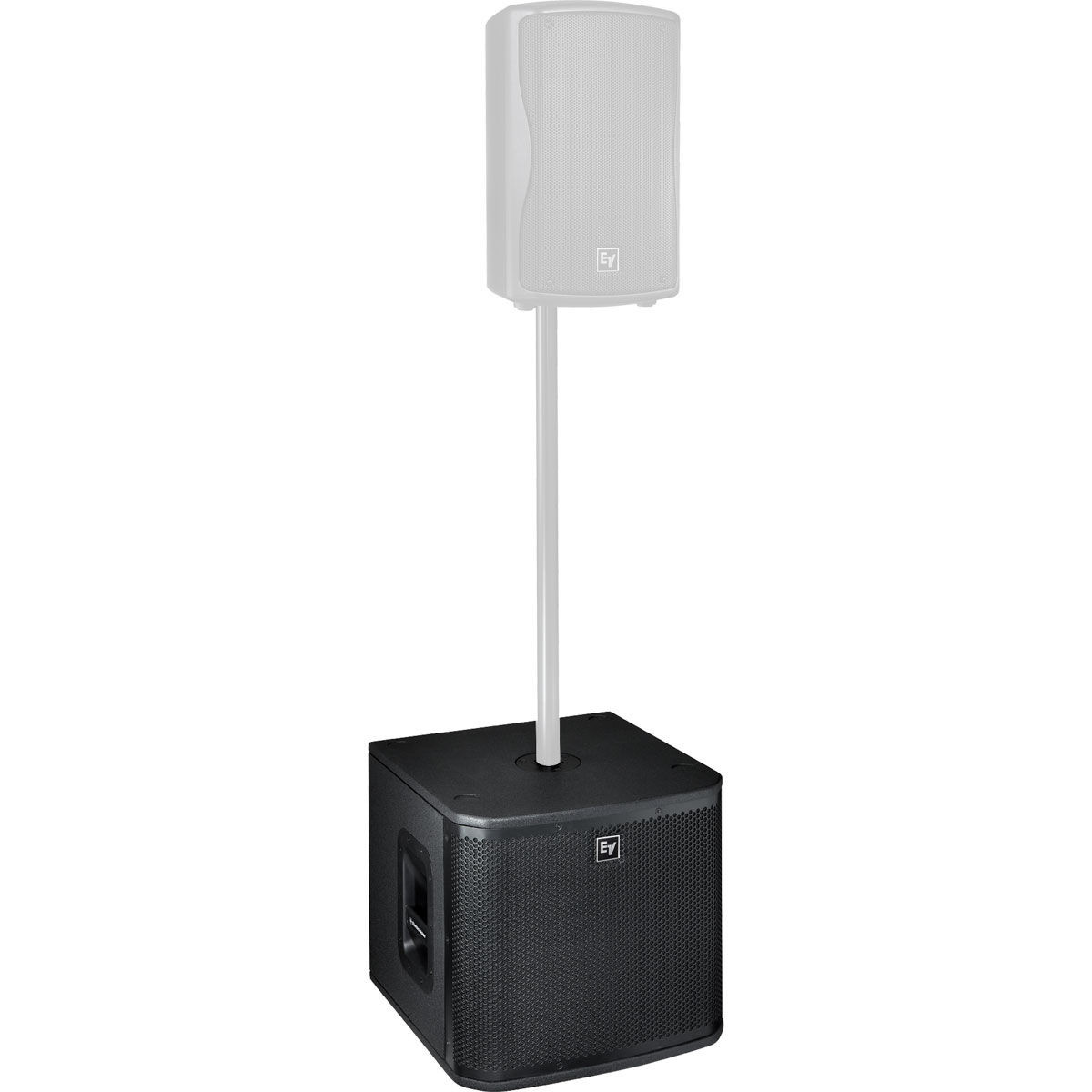

• Pole mount for full-range systems
• 9-ply/15-mm wood enclosure, internally braced, with textured paint
• 46 pounds, with integral handle for easy carrying
• Switchable EQ Modes for Different Applications
• LED indicators for Power On and Limit
ZXA1-SUB Specifications
• Amplifier Power: 800 Watts (RMS)
• Color: Black
• Coverage (Nominal -6 dB): Omnidirectional
• Input Connections: (2) XLR Stereo Input, (2) XLR Stereo Output
• Power Requirement: 120V: 90V-132v, 1.0 A, 50-60Hz 230V: 190V-264V, 0.6A, 50-60Hz
• Speaker Type: Powered Subwoofer
• Frequency Response (-3 dB): 5393 Hz Half Space
• Frequency Response (-10 dB): 44118 Hz Half Space
• Max. SPL/1m (calc): 126 dB Half Space
• System Power Handling (Continuous/Program/Peak): 700 Watts
• LF Transducer: (1) EVS-12S, 305mm (12") Woofer
• Crossover Frequency: 100 Hz
• Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
• Outdoor: No
• Grill: 16GA Steel with Black Powdercoat
• Height: 15.75" (400 mm)
• Width: 17.5" (444.5 mm)
• Depth: 18" (457.2 mm)
• Weight Net: 20.9 kg (46.08 lbs)
