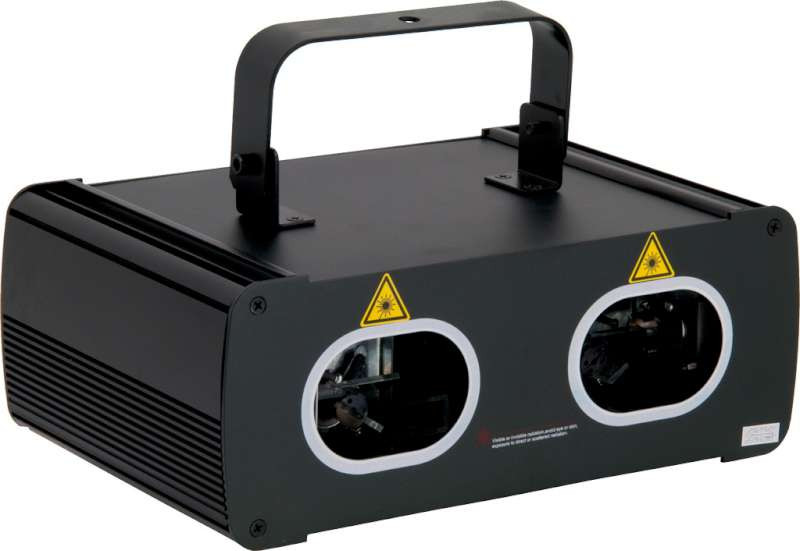

Laserworld EL-D100G Ecoline Laser

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

laserworld eld100g
laserworld eld100g Laserworld EL-D100G Ecoline Laser Laserworld EL-D100G Ecoline Laser Laserworld EL-D100G Ecoline Laser Laserworld EL-D100G Ecoline Laser Laserworld EL-D100G Ecoline Laser Laserworld EL-D100G Ecoline Laser Laserworld EL-D100G Ecoline Laser Laserworld EL-D100G Ecoline Laser
Images may show accessories or configurations not packaged with this item.

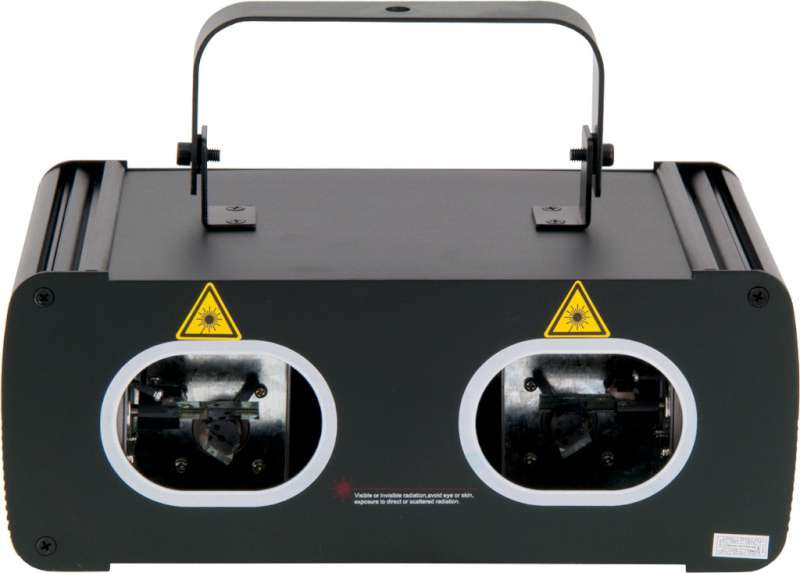

The Laserworld EL-D100G is a green single color laser system with two laser apertures and a total output power of up to 100mW. The green DPSS laser module with a wavelength of 532nm ensures a high visibility and brightness. At the same time the projector has good beam specifications with a beam diameter of about 3mm and beam divergence of about 1.5mrad and it offers high-speed stepper motors with 2-5kpps as well as a scan angle of up to 30.

Approximately 50 preset basic patterns, like layers, tunnels, fences, waves etc. can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be altered.The double laser aperture provides intensive beam effects and doubles the impressions.



The Laserworld EL-D100G is a low priced solution for fist-time users and it is often used in bars, small clubs, at private parties or home use.

Total Power typical: 100mW
Minimum output power: 80mW
Power Green: >80mW / 532nm
Beam Specifications: ca. 3mm / 1.5mrad
Laser Sources: DPSS Laser
Laser Class: 3b
Operation Modes: Stand-Alone, Sound-to-Light, DMX
Scanner: high-speed stepper motors, up to 2-5kpps
Scan Angle max.: 30
Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual
Power Supply: 110V - 220V AC 50/60Hz
Power Consumption: 30W
Dimensions: 8.2/12/4.8 in
Weight: 6.2 lbs

Consumer Alert!
Due to the high power of this laser, a variance is required to be applied for with the FDA (CDRH.) When purchasing, don't forget to add (1) EZVariance Kit to your order.

Additional Information

UPC 7640144991074
SKU ELD100G
Manufacturer Laserworld
Product Condition New - On Clearance
Returnable No
