The brand new Laserworld Diode Series units come with diode-only laser sources ("Pure Diode") and thus have great beam specifications with beautiful analogue color modulation. The Diode Series units can be controlled over ILDA and have a bult-in memory with preset patterns, that can be easily triggered through DMX. They can also be operated in automatic and sound-to-light mode.
Beginners as well as professionals use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight.
The Laserworld DS-900RGB comes with more than 140mW red at 638nm and uses the new green diodes at 520nm (>110mW). The blue diode has over 550mW power at 450nm.
Beam specifications are at great 3mm/1.3mrad full angle and scanning can go as fast as 40kpps@4, whereas the scanners can scan a maximum angle of 40.
The whole projector is built with Sealed Housing technology and thus maintenance intervals can be kept very low. Additional Information
Total Power typical: 950mW
Minimum output power: 800mW
Power Red: >140mW/638nm
Power Green: >110mW/520nm
Power Blue: >550mW/450nm
Beam Specifications (full angle): ca. 3mm/1.3mrad
Laser Sources: Diode
Laser Class: 4

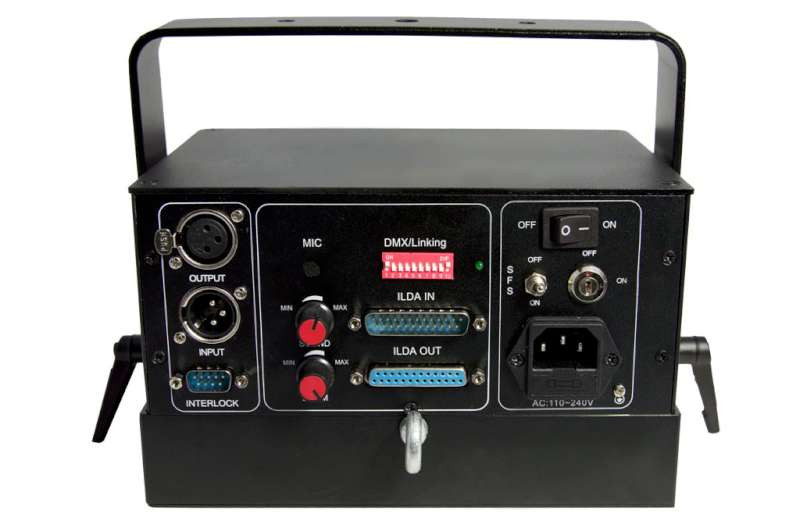

Operation Modes: ILDA, DMX, Stand-alone, Sound-to-Light
Scan Angle max.: 40
Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual, keys
Power Supply: 110V - 220V AC 50/60Hz
Power Consumption: 60W
Dimensions: 8.5/5.9/5.2 in
Weight: 9.9 lbs

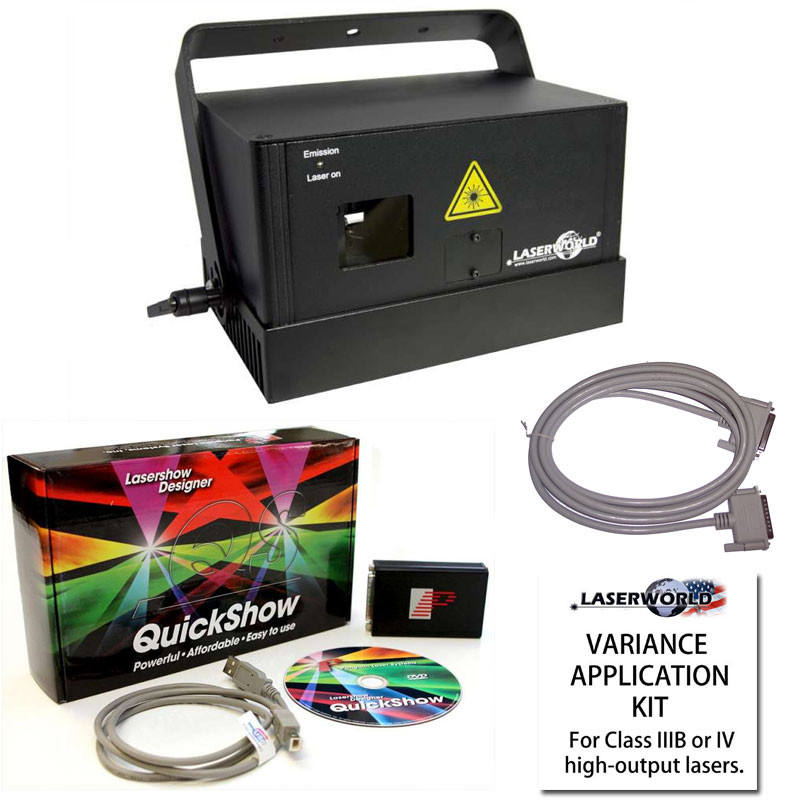

Due to the high power of this laser, a variance is required to be applied for with the FDA (CDRH.) When purchasing, don't forget to add (1) EZVariance Kit
to your order.
