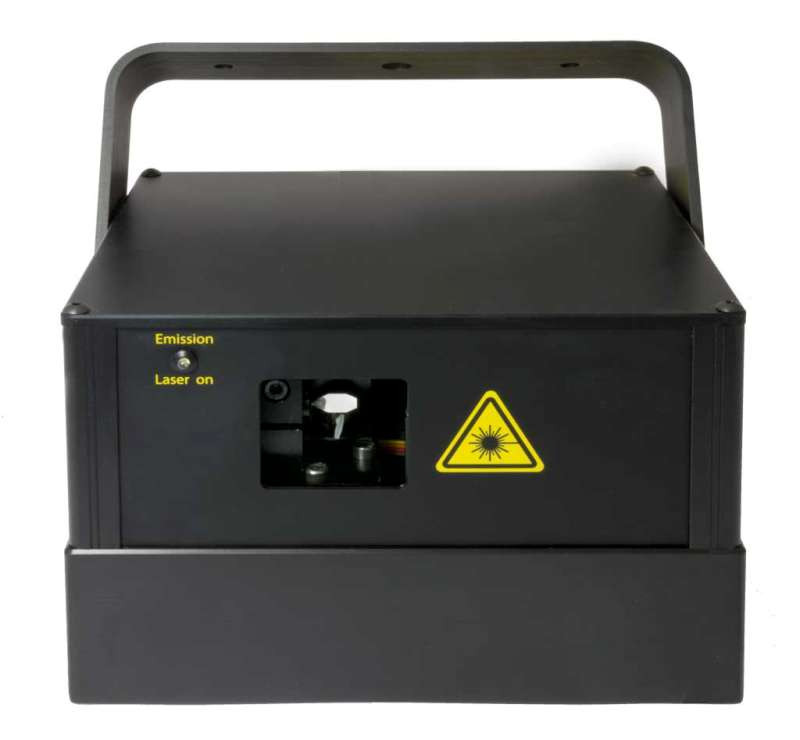

Laserworld PM-1200RGB Pure Diode Micro Laser

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

laserworld pm1200rgbpurediode
laserworld pm1200rgbpurediode Laserworld PM-1200RGB Pure Diode Micro Laser Laserworld PM-1200RGB Pure Diode Micro Laser Laserworld PM-1200RGB Pure Diode Micro Laser Laserworld PM-1200RGB Pure Diode Micro Laser Laserworld PM-1200RGB Pure Diode Micro Laser Laserworld PM-1200RGB Pure Diode Micro Laser Laserworld PM-1200RGB Pure Diode Micro Laser Laserworld PM-1200RGB Pure Diode Micro Laser
The SwissLas PM-1200RGB Pure Diode lasers are completely equipped with diodes - even for the green color. These green 520nm diodes are seamlessly integrated in the SwissLas RGB array modules. The results of this development are:
- an extremely low divergence (ca. 0.8mrad)
- sharp beams and precise projections
- a brilliant green with great linear color fading behavior
- a high professional solution for laser applications that need highly accurate color balancing, but don't need too high powers.



The RGB module used for the Pure Micro projectors are Swiss Made and have the special beam shaping and collimation of Swisslas to ensure great beam precision. No matter if graphics projections, beam shows or professional advertising - the Pure Micro units work on highest professional level.

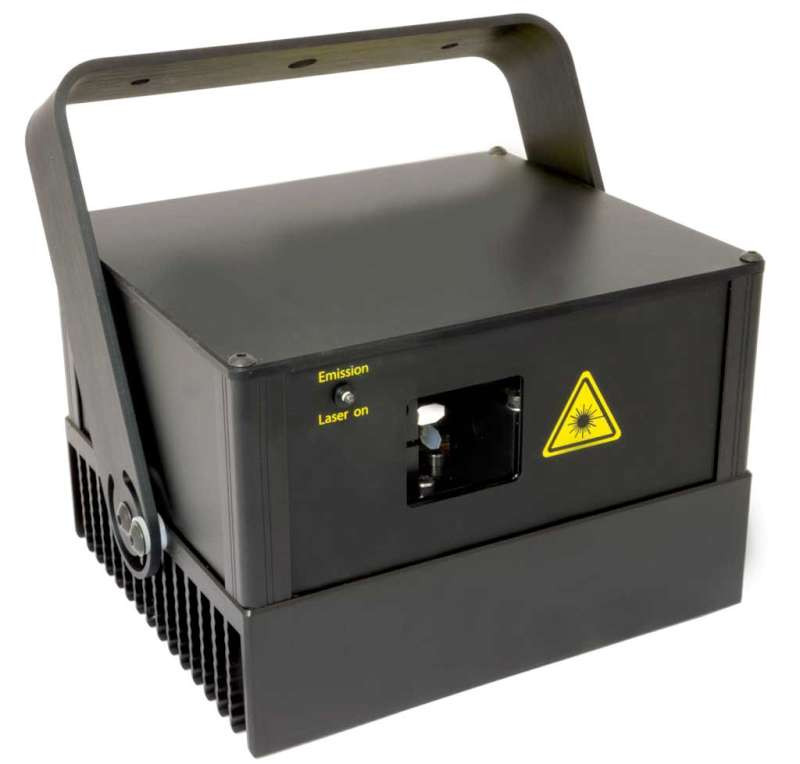

The complete projector is built with Sealed Housing Technology and is cooled through the external cooling fins (bottom part).

The very small housing (7.3/6.5/5.0 in) and the very low weight makes this unit very versatile: Just carry several Pure Micro units in your hand luggage to your laser shows all around the world! Of course the Pure Micro units respect the very latest safety regulations according to IEC-60825 - and even beyond those: The Xscan come standard with Advanced Scan Fail Safety.

The projector has good beam specifications with a beam diameter of about 3mm and beam divergence of about 0.8mrad. There is a guaranteed total power of 1'000mW and a typical output power of 1'200mW.

Total Power typical: 1'200mW
Guaranteed power at aperture: 1'000mW
Power Red: >170mW / 638nm
Power Green: >150mW / 520nm
Power Blue: >730mW / 450nm
Beam Specifications (full angle): ca. 3mm / 0.8mrad
Laser Sources: Diode
Laser Class: 4

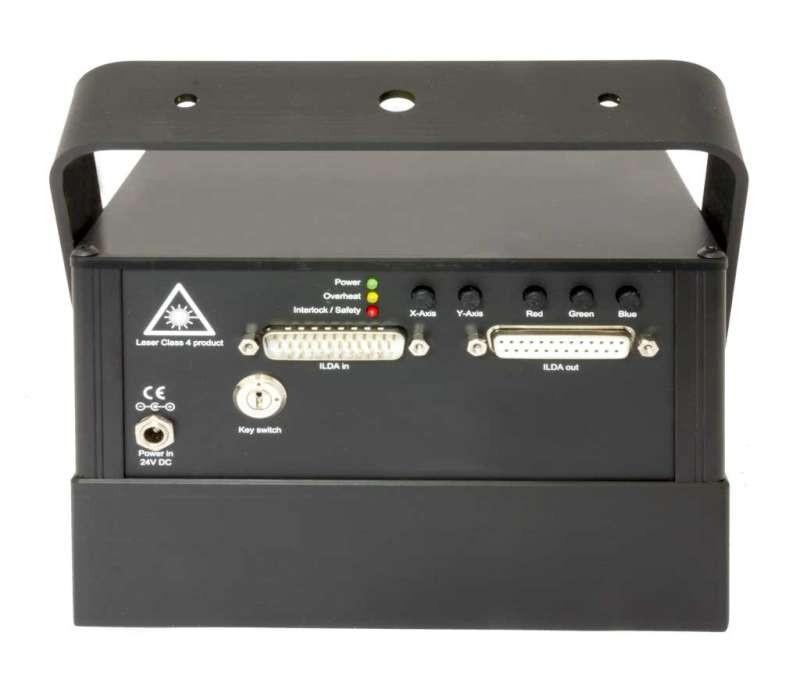

Operation Modes: ILDA; optional DMX, LAN, SD-card
Scanner: Xscan Galvo System, 35kpps@8 ILDA; as upgrade available CT-6210HP, >50kpps@8 ILDA
Scan Angle max.: 60 max.
Accessories: External PSU, Allen key, power cable, manual
Power Supply: 100-220V AC 50/60Hz through external 24V DC >4A
Power Consumption: 90 W
Dimensions: 7.3/6.5/5.0 in
Weight: 9.1 lbs

Consumer Alert!
Due to the high power of this laser, a variance is required to be applied for with the FDA (CDRH.) When purchasing, don't forget to add (1) Variance Kit to your order.
