In comparison to the 'non-advanced' show laser lights of the Proline Series this devices provides an analog modulation. It means a better green color regulation. These facts makes the Laserworld PRO-1000G advanced ideal for all applications, needing a analog modulation.Computer control:
The Laserworld PRO-1000G advanced has an ILDA interface for professional computer control. Thus own or pre-programmed lasershows can be displayed by use of a laser control software, e.g. of Phoenix or Pangolin.DMX Mode:
Through DMX preset patterns, like waves, tunnels, circles etc. can be projected at various speed.Automatic Mode:
The laser system has an automatic mode, which runs the pre-programmed patterns automatically.Music Mode:
If the music mode is active, the laser system projects according to the sound. The microphone sensitivity can easily be adjusted at the rear side of the projector.

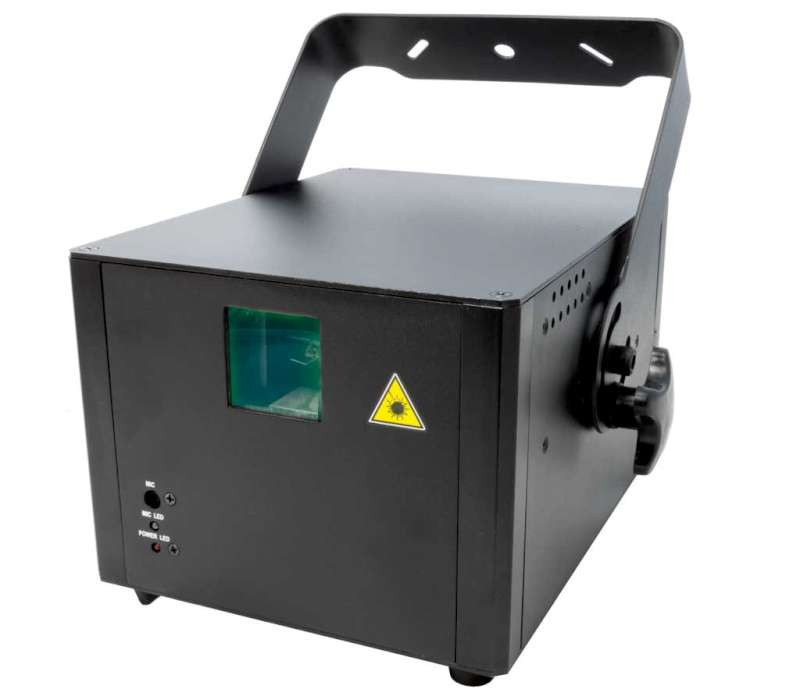

The rugged housing of the PRO-1000G advanced is very compact and has dimensions of only 27 x 19 x 16 cm (W/B/H). A special feature of the housing is the mounting bracket that allows to fasten the unit in about 360 turns around the mounting axis of the bracket. This feature makes a fixed installation very easy.

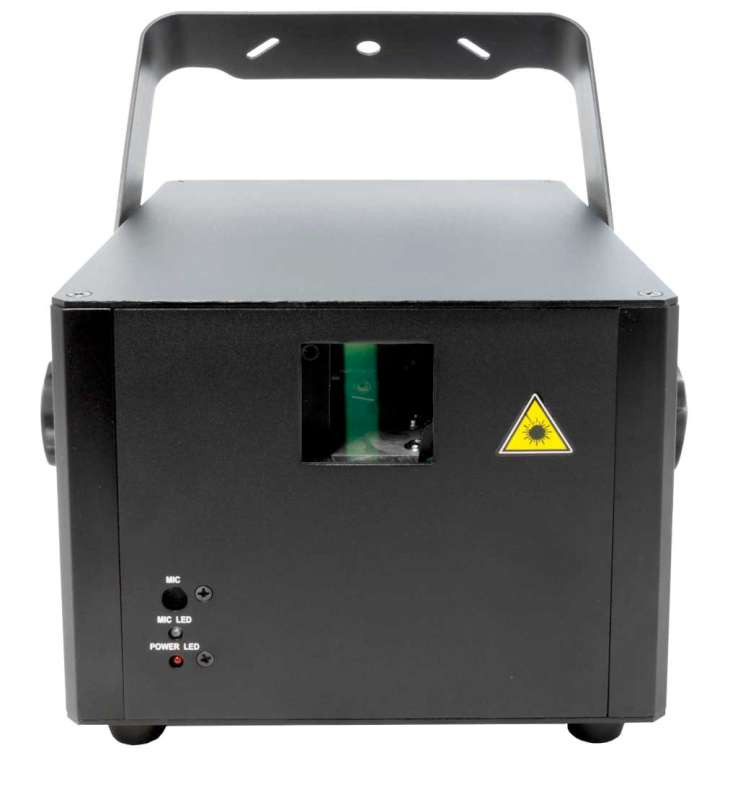

The microphone for the sound-to-light reception and the status LEDs are located at the front panel of the PRO-1000G advanced, next to the laser aperture. In the sound-to-light mode the MIC LED on the front side is flashing when the microphone receives sound triggers. A second LED lights if the laser is in operation mode.

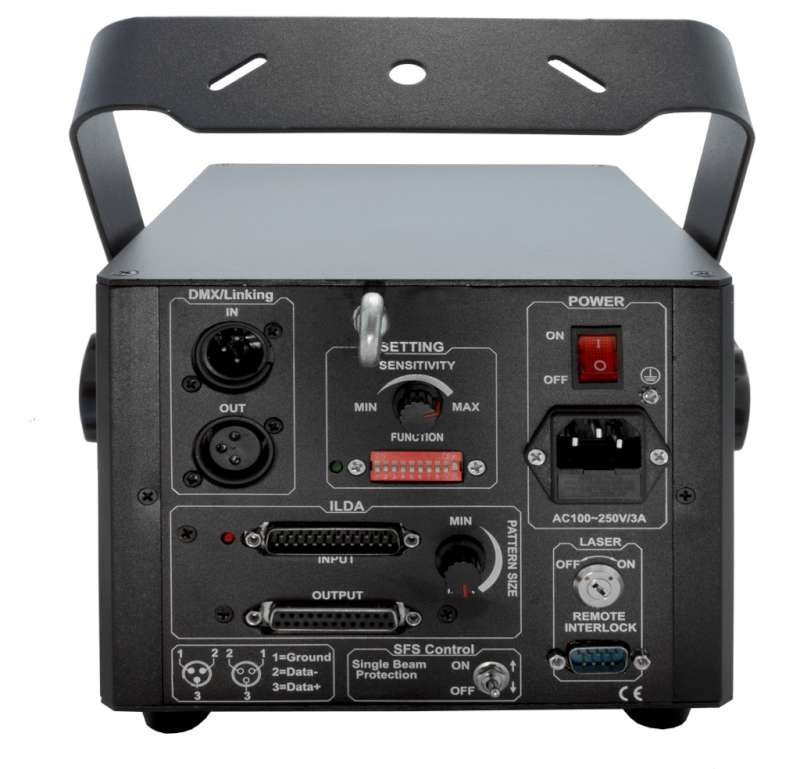

On the rear side of this laser device, a variety of features can be set and different interfaces can be used. In addition to the power connection socket and an on/off switch there are interfaces for DMX in and out, ILDA in and out and for Interlock connection. In case of an active ILDA connection a green LED lights next to the ILDA interface. An integrated key switch prevents the laser system against unauthorized use. The PRO-1000G advanced is equipped with a beam block "Scan Fail Safety", that can be switched on/off on the back panel as well. In active state this prevents the laser from projecting single beams.
Two rotary buttons on the rear side of the device allow adjustement of the pattern size and the sensitivity of the microphone. Furthermore there are dip switches for setting the different operation modes and DMX address. Finally a special loop for a safety cord has been integrated.
The PRO-1000G advanced laser lights are equipped with green diode laser module. The projector has good beam specifications with a beam diameter of about 2mm and beam divergence of about 1.0mrad. At the same time it offers a galvo system with up to 40kpps with a max. scan angle of 40 and a deflection angle for the grating effects of up to 80.
The Laserworld PRO-1000G advanced is a powerful green laser light system. This device is well suited for private use and professional applications and it is ideal for use in medium to larger sized clubs, discos and nightclubs or in other party locations. It is also a great solution for mobile DJs and rental companies.Additional Information
Total Power typical: 1'000mW
Guaranteed power at aperture: 800mW
Power Green: >800mW/520nm
Beam Specifications: ca. 2mm / 1.0mrad
Laser Sources: Diode
Laser Class: 4
Operation Modes: auto, music, DMX, ILDA
Scanner: Galvo System, max. 40kpps@4
Scan Angle max.: 40 max
Accessories: power cable, manual, interlock connector, key
Power Supply: 110V - 220V AC 50/60Hz
Power Consumption: 50W
Dimensions: 10.7/7.5/6.3 in
Weight: 10.4 lbs
Due to the high power of this laser, a variance is required to be applied for with the FDA (CDRH.) When purchasing, don't forget to add (1) EZVariance Kit
to your order.
