The very advantage of the projectors of the Proline Series is the integrated Glass Effects Actuator: The systems not only run in normal scanner mode. Similar to an optical bench they are equipped with additional grating effects. Without the effects it is possible to show emotionalizing beam shows as well as graphis projections.
The integrated effects can be used individually through selecting a dip switch on the back panel or with a DMX controller, in addition all integrated effects can be used through Automatic mode or Music Mode including in conjunction with ILDA software for spectaculars results
Proline Series Dip Switch Settings
Normal scanner mode - creates emotionalizing beam shows and graphics projections (Dip Switch 5)
Burst Grating mode - the scanned pattern is multiplied many times and covers a wide range (Dip Switch 6)
3D Effect mode - creates a great 3D-looking effect on the scanned pattern (Dip Switch 8)
Radial Pattern Effect mode - A pattern is displayed in the center, the effect shows a multitude of this projection in circles around the center projection (Dip Switch 7)
The Laserworld PRO-700RGB advanced has an ILDA interface for professional computer control. Thus own or pre-programmed lasershows can be displayed by use of a laser control software, e.g. of Phoenix or Pangolin.
Through DMX preset patterns, like waves, tunnels, circles etc. can be projected in different colors and at various speed.
The laser system has an automatic mode, which runs the pre-programmed patterns automatically. (Dip Switch 1 & 10)
If the music mode is active, the laser system projects according to the sound. The microphone sensitivity can easily be adjusted at the rear side of the projector. (Dip Switch 10)

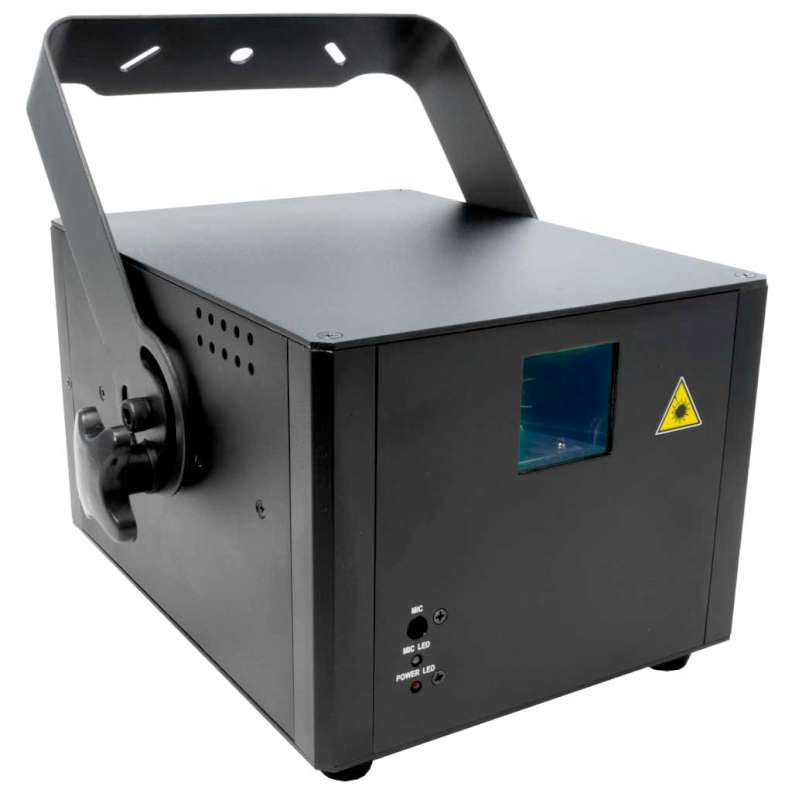

The rugged housing of the PRO-700RGB advanced is very compact and has dimensions of only 27 x 19 x 16 cm (W/B/H). A special feature of the housing is the mounting bracket that allows to fasten the unit in about 360 turns around the mounting axis of the bracket. This feature makes a fixed installation very easy.

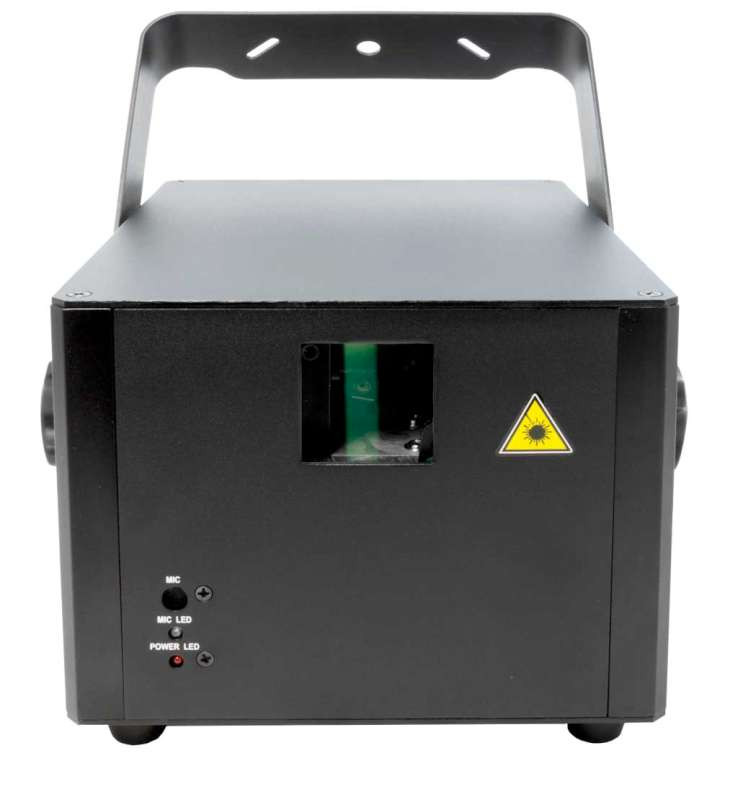

The microphone for the sound-to-light reception and the status LEDs are located at the front panel of the PRO-700RGB advanced, next to the laser aperture. In the sound-to-light mode the MIC LED on the front side is flashing when the microphone receives sound triggers. A second LED lights if the laser is in operation mode.

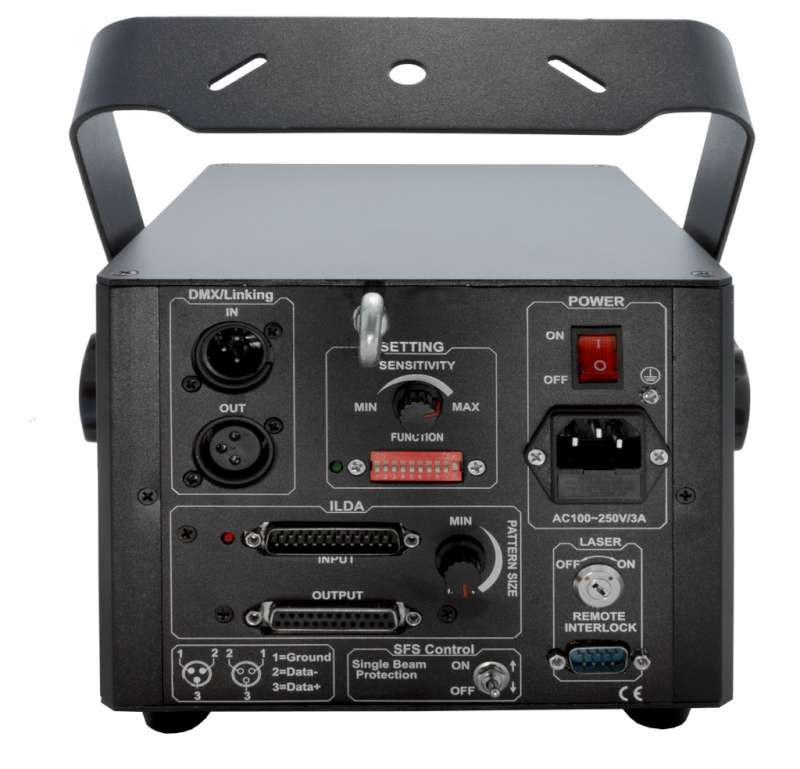

On the rear side of this laser device, a variety of features can be set and different interfaces can be used. In addition to the power connection socket and an on/off switch there are interfaces for DMX in and out, ILDA in and out and for Interlock connection. In case of an active ILDA connection a green LED lights next to the ILDA interface. An integrated key switch prevents the laser system against unauthorized use. The PRO-700RGB advanced is equipped with a beam block "Scan Fail Safety", that can be switched on/off on the back panel as well. In active state this prevents the laser from projecting single beams.
Two rotary buttons on the rear side of the device allow adjustement of the pattern size and the sensitivity of the microphone. Furthermore there are dip switches for setting the different operation modes and DMX address. Finally a special loop for a safety cord has been integrated.
The PRO-700RGB advanced is equipped with red and blue diode laser modules and a green DPSS laser module. The red diode has a wavelength of 637nm for very good visibility at great beam specifications. Togehter with the green DPSS laser module with a wavelength of 532nm and the royal-blue diode laser module with a wavelength of 445nm the laser sources create brilliant colors and form a powerful source for the PRO-700RGB advanced.
The projector has good beam specifications with a beam diameter of about 3mm and beam divergence of about 1.3mrad. At the same time it offers a galvo system with up to 40kpps with a max. scan angle of 40 and a deflection angle for the grating effects of up to 80.
The Laserworld PRO-700RGB advanced is a powerful whitelight laser system. This device is well suited for private use and professional applications and it is ideal for use in medium to larger sized clubs, discos and nightclubs or in other party locations. It is also a great solution for mobile DJs and rental companies.
Total Power typical:700mW
Minimum output power:600mW
Power Red:>100mW / 637nm
Power Green:>100mW / 532nm
Power Blue:>400mW / 445nm
Beam Specifications:ca. 3mm / ca. 1.3mrad
Laser Sources:Diode, DPSS Laser
Operation Modes:auto, music, DMX, ILDA
Scanner:Galvo system, up to 40kpps @4
Scan Angle max.:40 max. / 80 for glass effects
Basic Patterns:layers, tunnels, fences, waves etc.; grating & 3D effects
Accessories:power cable, manual, interlock connector, key
Power Supply:110V - 220V AC 50/60Hz
Power Consumption:50 W
Due to the high power of this laser, a variance is required to be applied for with the FDA (CDRH.) When purchasing, don't forget to add (1) EZVariance Kit to your order.
|Product Condition||New - On Clearance|
