This show laser light provides an analog modulation. It means a better color fading and a much broader color hue. These facts make the Laserworld PRO-800RGB ideal for all applications requiring many different color hues and color fadings.
The very advantage of the projectors of the Proline Series is the integrated Glass Effects Actuator: The systems not only run in normal scanner mode. Similar to an optical bench they are equipped with additional grating effects. Without the effects it is possible to show emotionalizing beam shows as well as graphics projections. Through DMX control three different grating effects can be chosen:Integrated Effects:
The integrated effects can be used individually through selecting a dip switch on the back panel or with a DMX controller, in addition all integrated effects can be used through Automatic mode or Music Mode including in conjunction with ILDA software for spectaculars resultsProline Series Dip Switch settings:
• Normal scanner mode creates emotionalizing beam shows and graphics projections (Dip Switch 5)
• Burst Grating mode the scanned pattern is multiplied many times and covers a wide range (Dip Switch 6)
• 3D Effect mode creates a great 3D-looking effect on the scanned pattern (Dip Switch 8)
• Radial Pattern Effect mode A pattern is displayed in the center, the effect shows a multitude of this projection in circles around the center projection (Dip Switch 7)Computer control:
The Laserworld PRO-800RGB has an ILDA interface for professional computer control. Thus own or pre-programmed lasershows can be displayed by use of a laser control software, e.g. of Phoenix or Pangolin.DMX Mode:
Through DMX preset patterns, like waves, tunnels, circles etc. can be projected in different colors and at various speed.Automatic Mode:
The laser system has an automatic mode, which runs the pre-programmed patterns automatically. (Dip Switch 1 & 10) Music Mode:
If the music mode is active, the laser system projects according to the sound. The microphone sensitivity can easily be adjusted at the rear side of the projector. (Dip Switch 10)SD Card:
The Laserworld PRO-800RGB has an integrated SD card slot (a 2 GB SD card is included in the delivery). It allows saving patterns, animations or shows as .ILD files on the SD card and running them at the projector. This option makes the use of this show laser system very flexible and independent of computer control.
Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.
This laser device has a LCD display as well as menu buttons at the rear side providing a variety of features like setting the modes, grating effects, animations, colors, music sensitivity, etc..

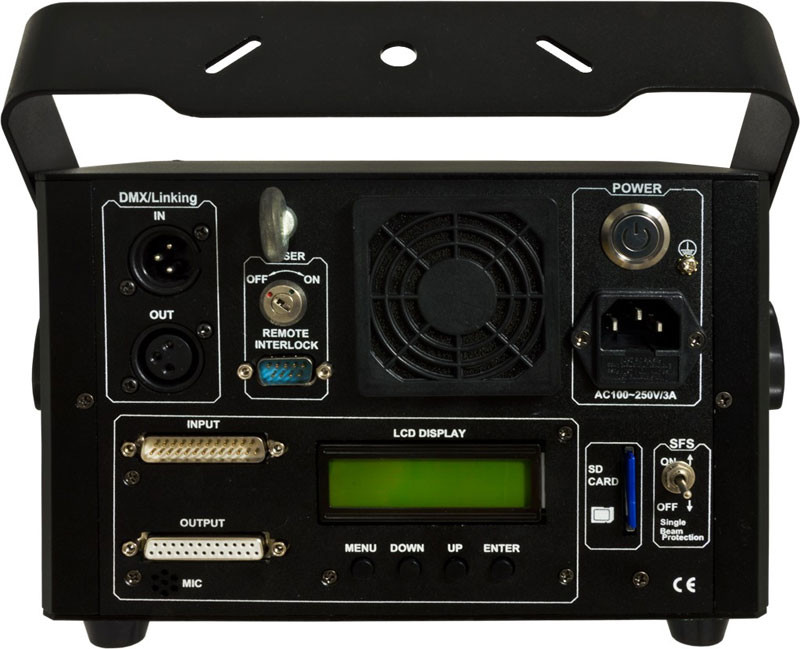

In addition to the power connection socket and an on/off button there are interfaces for DMX in and out, ILDA in and out and for Interlock connection. An integrated key switch prevents the laser system against unauthorized use. The Laserworld PRO-800RGB is equipped with a beam block "Scan Fail Safety", which can be switched on/off on the back panel as well. In active state this prevents the laser from projecting single beams.
Finally a microphone for the music mode and a special loop for a safety cord have been integrated.IR Remote Control:

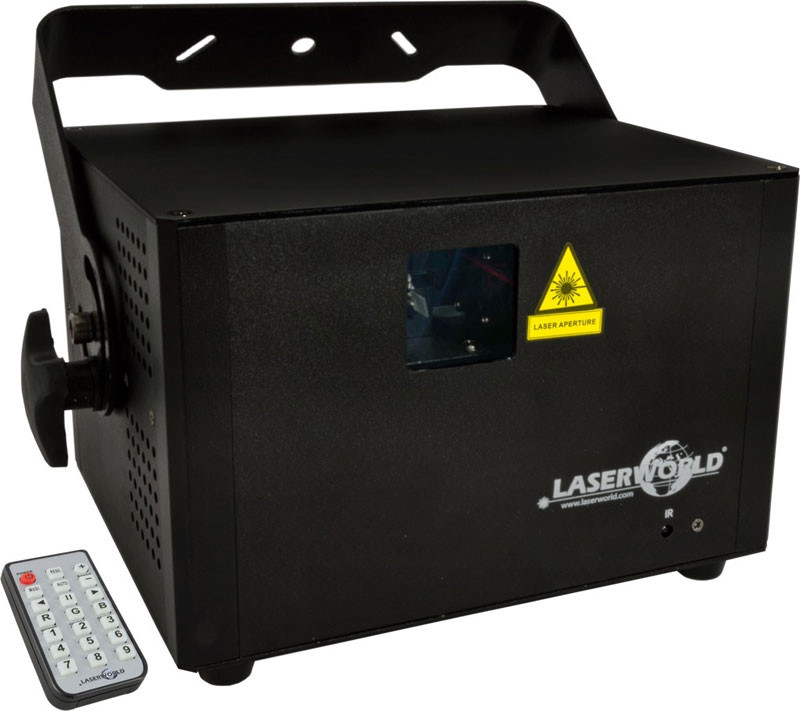

An IR remote controller, included in the delivery, allows different settings like modes selection, speed control, run specific patterns etc The IR LED at the front side flashes when receiving commands by the controller. The IR control is ideal when the projector is mounted on a truss etc. difficult to reach.

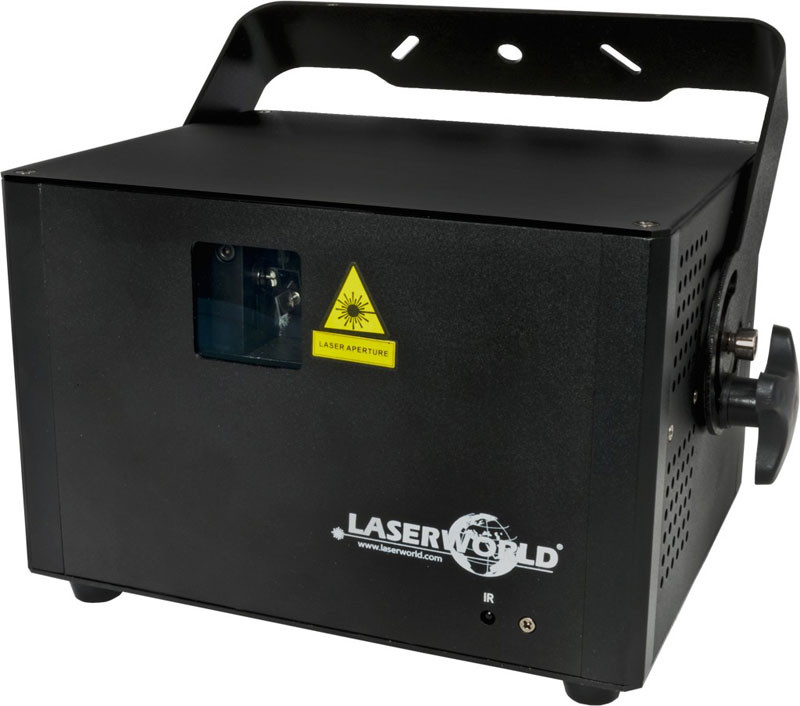

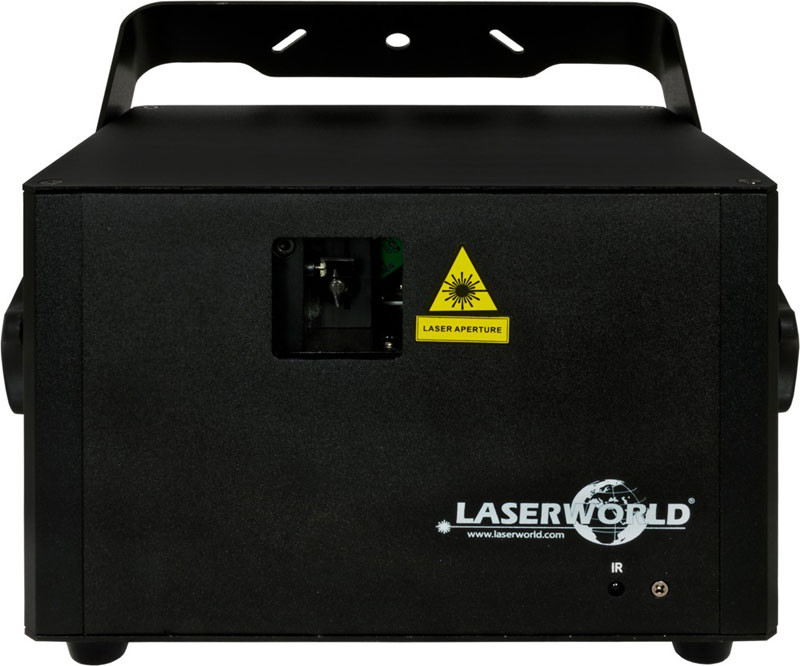

The rugged housing of the Laserworld PRO-800RGB is very compact and has dimensions of only 9.25 x 8.1 x 6.5 in (W/B/H). A special feature of the housing is the mounting bracket that allows to fasten the unit in about 360 turns around the mounting axis of the bracket. This feature makes a fixed installation very easy.
The Laserworld PRO-800RGB is equipped with red and blue diode laser modules and a green DPSS laser module. The red diode has a wavelength of 637nm for very good visibility at great beam specifications. Together with the green DPSS laser module with a wavelength of 532nm and the royal-blue diode laser module with a wavelength of 445nm the laser sources create brilliant colors and form a powerful source for the Laserworld PRO-800RGB.
The projector has good beam specifications with a beam diameter of about 3mm and beam divergence of about 1.3mrad (full angle). At the same time it offers a galvo system with up to 40kpps with a max. scan angle of 40 and a deflection angle for the grating effects of up to 80.
The Laserworld PRO-800RGB is a powerful white light laser system. This device is well suited for private use and professional applications and it is ideal for use in medium sized clubs, discos and nightclubs or in other party locations. It is also a great solution for mobile DJs and rental companies.Laserworld Pro-800RGB Features
• Total Power typical: 800mW
• Minimum output power: 700mW
• Power Red: 120mW / 637nm
• Power Green: 120mW / 532nm
• Power Blue: 460mW / 445nm
• Beam Specifications (full angle): ca. 3mm / ca. 1.3mrad
• Laser Sources: Diode, DPSS Laser
• Laser Class: 4
• Operation Modes: auto, music, DMX, ILDA, SD Card
• Scanner: Galvo system, up to 40kpps @4
• Scan Angle max.: 40 max. / 80 for glass effects
• Basic Patterns: >200 Patterns (layers, tunnels, fences, waves etc.; grating & 3D effects)
• Accessories: power cable, remote control unit, SD Card, manual, interlock connector, key
• Power Supply: 110V - 220V AC 50/60Hz
• Power Consumption: 50 W
• Dimensions: 9.25/8.1/6.5 in
• Weight: 10 lbs
