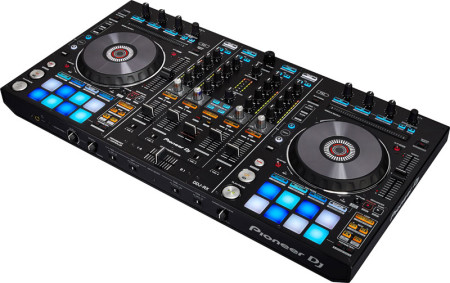

Utilize all 4 rekordbox dj decks with this dual deck, 4-channel controller. You'll have full control over each channel, including individual level meters and trim pots. Rekordbox is not required for use, as you can use the DDJ-RX as a standalone mixer unit as well.
Fresh Layout Integration with software is one of the most crucial features of a DJ controller, and the DDJ-RX fully represents that. The controller was built to mirror the software layout, giving you the ability to find, load, and mix faster than ever. 16 rubber pads (8 for each deck) are backlit, and allow you to trigger quantized hot cues, pad FX and slicer without missing a beat.
Famous Aluminum Jog Wheels Pioneer DJ is famous in part for a smooth, sleek jog wheel, and the RX gives you them once again. The scratch response is perfect, and the lit up cue point markers help give you an accurate countdown. Scratch and reverse your tracks with more precision than ever before.
Sound Color FX Buttons Choose from Noise, Crush, Pitch, and Filter on your four FX buttons on the DDJ-RX. Want more control? In the near future, you'll be able to customise them even further as new releases of rekordbox dj Plus Packs become available.
Professional and Advanced FX Create complex FX patterns with vinyl brake, echo and even backspin. The Pad FX let you create chains of FX with the use of the 16 pads. Sequencer mode gives you the opportunity to record your mixes, while being able to play and sample sequences as the night goes on. You control the parameters of your quantized Beat FX on rekordbox DJ, with the ability to trigger up to three of them.
Stellar Slip Mode When you're in loop, scratch, or even revers, the tracks playing are muted during your live edits. A quick release of the jog wheel, and your music is going to jump back right where you need it to, for seemless on-the-fly techniques.
Beat Jump Back and Forth The Quantized Beat Jump feature allows you to go 1, 2, or even 4 beats forwards or backwards from the current position on your track.
Connect it How You Want it 4 inputs give you the opportunity to connect either your analogue turntables or some CD players. With 2 master outputs plus a booth, you'll have no problem connecting to your professional audio equipment. Plus, the RX features TWO microphone inputs, both which have been improved for removing distortion.
Top of the Line Audio Hardware The RX is built from top of the line audio circuitry and only the best materials. The controller was designed for extended use and durability, while keeping the famous styling and ever-so-popular jog wheels that Pioneer DJ has always brought to the table.
Know Your Place in the Dark The touch strip on the DDJ-RX is illuminated, making it easy to search your tracks, even in the most poorly lit clubs.
Pioneer DDJ-RX Specifications • Width: 26.1417"
• Height: 2.771654"
• Depth: 13.9134"
• Weight: 12.79 lbs
• Soundcard: 24 bit/44.1 kHz
• Frequency Range: 20-20,000 Hz
• Signal to Noise Ratio: 107 dB
• Distortion: < 0.003% (USB)
• Power requirements: AC Adapter 110-240V, rated output 5 V DC
Pioneer DDJ-RX Performance Control • Channels: 4
• Deck Control: 4 - Dual Deck
• Jog Wheel: 132.5 mm durable aluminum jog wheel with center illumination
• Pad FX
• Filter: High/Low Pass Filter
• Colour FX: Crush/Filter/Noise/Pitch
• Release FX: Back Spin/Echo/Vinyl Brake
• FX Parameters: 3 Knob, 3 Button
• Sampler: 16 Slot, 4 Bank
• Hot Cues: 8
• Sequencer
• Manual Loop
• Auto Beat Loop
• Beat Jump
• Slip Mode
• Needle Search
• Talkover Function
• EQ Isolator
• Fader Start
• Crossfader Curve Adjust
Pioneer DDJ-RX Input/Output Terminals • Inputs
- 2 CD (RCA)
- 2 PHONO/LINE (RCA)
- 2 MIC (XLR/Jack Combo, 1/4 inch Jack)
• Outputs
- 1 BOOTH (1/4 inch Jack)
- 2 HEADPHONE MONITOR (1/4 inch Jack, MiniPin)
- 2 MASTER (XLR, RCA)
• USB: 1 USB B port
