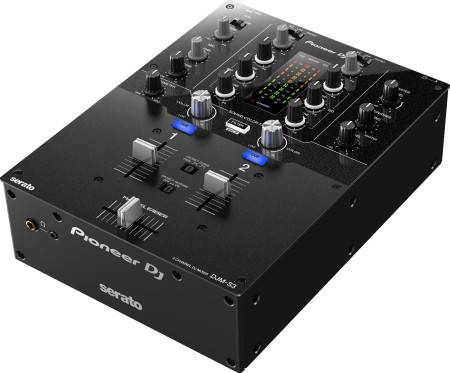

Pioneer DJM-S3 2-Channel Mixer for Serato DJ Pro

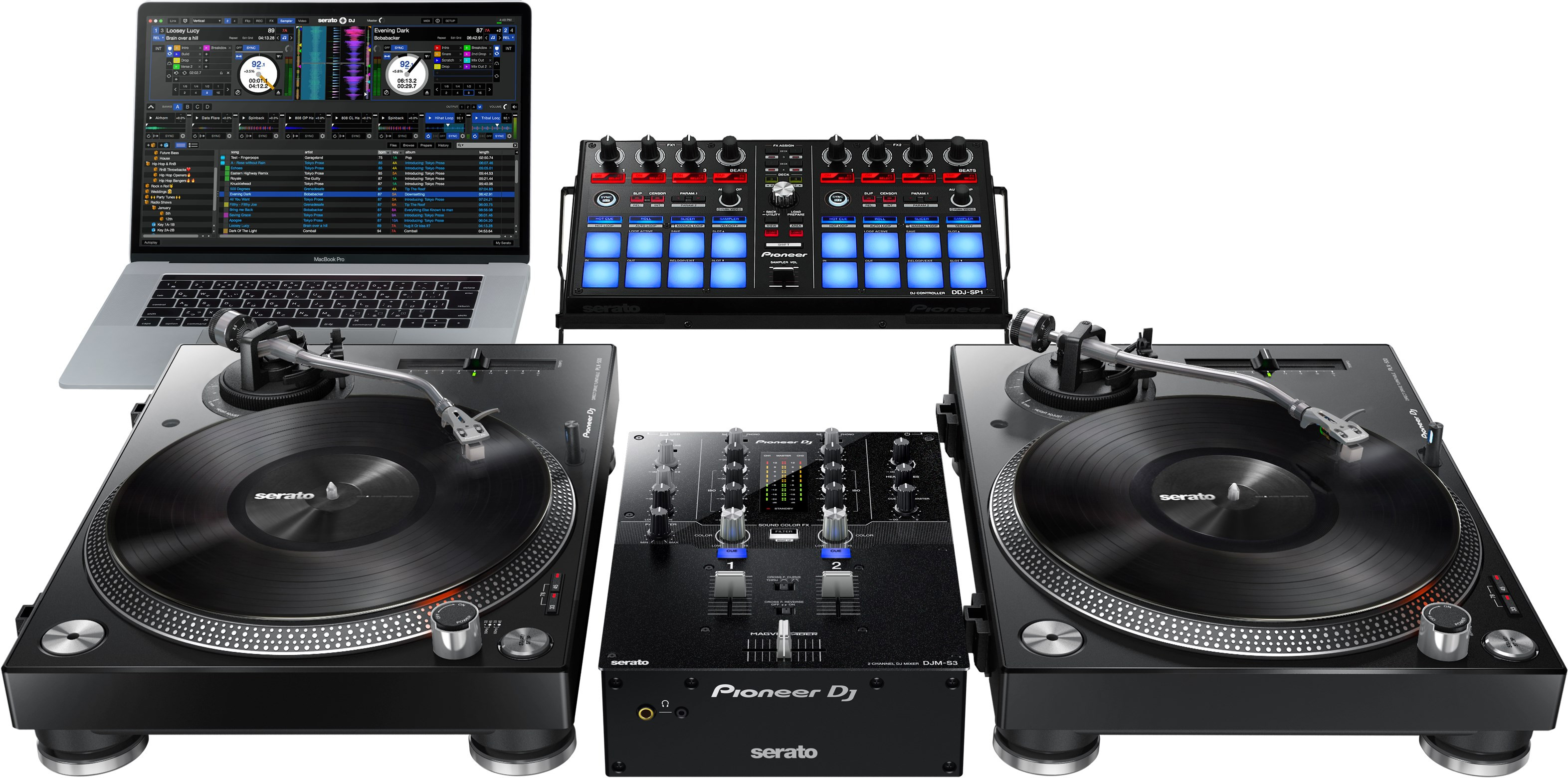

The scratch-friendly layout creates more room for you to be creative in the booth. No need to go easy, the DJM-S3 is built to withstand intense performances. And to bring even more creativity to your performances, you can connect the DDJ-SP1 controller and use its large Performance Pads for tactile control of many Serato DJ features, including its FX.



Built-in Sound Card
Connect your PC/Mac with a single USB cable to use Serato DJ and mix and scratch your digital files via turntables and the Serato DVS Control Vinyl or compatible multiplayers.

Magvel Crossfader
Scratching becomes effortless with the highly responsive Magvel Crossfader. Sharing the same quality as the DJM-900NXS2, the fader is accurate, smooth and durable for more than 10 million movements.

Independent Channel Filters
Turn the filter knob on each channel to create unique textures. By twisting the parameter knob you can adjust resonance and add tension to your performances.

High Quality Sound
Hear the true, high-quality sound of your tracks whether you're playing from digital or analogue sound sources thanks to the mixer's dithering technology.

Flexible Connectivity
The XLR terminals delivers premium sound quality. And the signal GND firmly holds ground wires from analogue turntables.

Two Headphone Outputs
The DJM-S3 lets you plug both an -inch stereo jack and 3.5-mm mini jack. Pick your size or attach 2 headphones when playing back-to-back.

Features
• DVS Control: Serato DJ
• Software System Requirements:
Windows 10, 8.1, 7 (latest service pack)
mac OS Sierra, X 10.11, 10.10 (latest update)
Processor: Intel processor Core' i7? i5?i3 1.07 GHz
Memory: 32-bit, 64-bit: 4 GB or more of RAM
USB: Available USB 2.0 port
Free HDD Space: 5GB
Display resolution: 1280 x 720
• Included Accessories:
Power cord
AC adaptor
USB cable
Operating Instructions (Quick Start Guide)

Specifications
Width: 9.06 in
Height: 4.25 in
Depth: 12.6 in
Weight: 6.61 lb
Frequency Range: 20 - 20000 Hz
Sampling Rate: 48 kHz
A/D Converter: 24 bit
D/A Converter: 24 bit
S/N Ratio Line: 94 dB
Distortion: < 0.005 % (LINE)
Power Supply: AC adaptor DC 12 V
Power Consumption: 600 mA
Inputs: 3 LINE (RCA), 2 PHONO (RCA), 1 MIC (1/4 inch TS Jack)
USB: 1 USB B port
Outputs: 1 MASTER (XLR); 1 MASTER (RCA); 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
