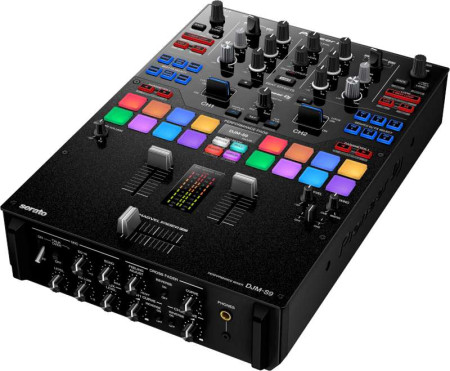

Pioneer DJM-S9 2-Channel Battle Mixer for Serato DJ, Black

Magvel Fader Pro
The Magvel Fader Pro, magnetic crossfader ensures excellent operability, durability and response. Change the operational load using the Feeling Adjust dial and modify its Curve and Reverse configuration to suit your DJ style. On top it has shock-absorbing bumpers to reduce unnecessary rebounds.

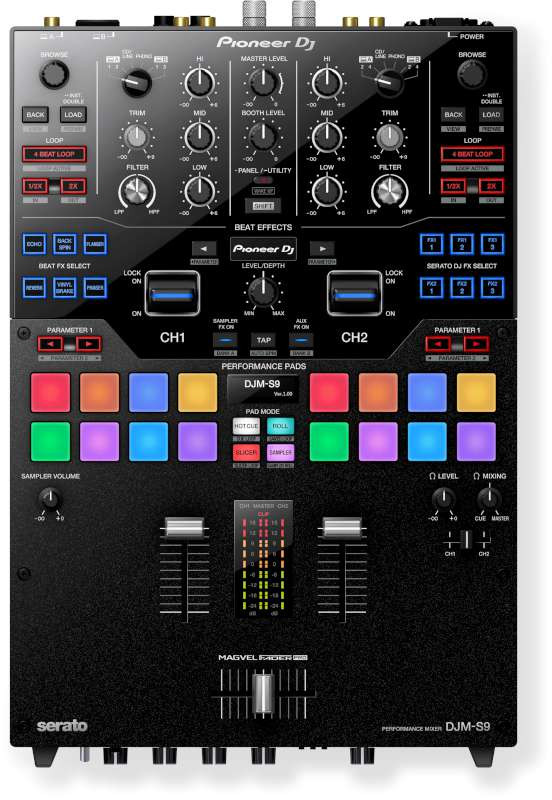

Performance pads
For dynamic live mixing, 16 multi-colour touch pads give access to Hot Cue, Roll, Slice, Loop and more. Their optimised shape and seat switch connections provide great accuracy and response, while the EL display instantly shows which mode is in play. In Serato DJ you can map other functions to the pads and allocate specific colours for an even stronger visual cue.

Customisable FX buttons
Six customisable buttons on each side of the mixer, and two in the middle, trigger effects directly on your hardware. Fire up six dedicated Beat FX on the left banks, or replace them with other popular on-board FX. On the right, you can map your favourite Serato DJ FX* and their parameters. The OEL display puts the effect types and beat settings at your fingertips.
* Serato DJ offers up to 55 different FX (paid expansion pack needed)

Filter FX
A high/low pass filter on each channel lets you manipulate FX by simply rotating the knob. With Serato DJ you can switch to other filter FX like Dub Echo, Noise and Pitch.

Style levers
The mixer has two large style levers that allow you to swiftly turn effects on and off. Give more dynamics to your sets by triggering FX briefly, locking them on, or exiting arrangements quickly.

2 Built-in soundcards
Two USB soundcards make this the ultimate plug-and-play Serato DJ mixer. Play back-to-back with other DJs seamlessly using the input switcher on top to switch between all four Serato DJ decks. And if you prefer to play with CDJs or turntables, you can easily do so thanks to DVS support.

MIC input
The MIC input features Echo FX and high-quality circuitry to eliminate unwanted distortion.

Clip display
The clip display shows you when your input levels are too high, while the peak limiter eliminates distortion on the MASTER output.

MIDI compatible
Fully assignable MIDI functionality via USB can transmit most control information to external devices and can also be used as a MIDI controller.

• MIDI Control: Full assignable MIDI controls
• Serato HID Control: Yes
• Auto Standby: Yes

Software System Requirements
Windows 8.1/ 7
(CPU) Core i3, i5 or i7 1.07 GHz Duo, (Memory) 4GB

Mac OS X 10.10/10.9/10.8
(CPU) Core i3, i5 or i7 1.07 GHz Duo, (Memory) 4GB

• Display Resolution: 1280 x 720 or higher

• Frequency Range: 20 - 20,000 Hz
• SN Ratio Line: 107 dB
• Distortion: < 0.005 %
• Power Requirements: 100-240 V / 50/60 Hz

Master
Master Balance: Yes
Level Meter Size: 12 segment

Channels
Channel EQ: 3 band
EQ Range: -8 +6 dB
EQ On/Off: Yes
Reverse Channels: Yes
Level Meter Type: Shared Master

Performance Control
Channels: 2
Beat Effects: Delay, Echo, Flanger, Phaser, Reverb, Trans
Effects: High-Pass Filter, Low-Pass Filter, Dub Echo, Noise, Pitch
Serato DJ FX powered by iZotope: 55

Effect/Sampler
3 Band Isolator: Yes
Auto BPM Counter: Yes

Cross Fader
Cross Fader Type: Magvel Fader Pro
Assignable: Yes
Reverse Cross Fader: Yes
Tension Adjustment: Yes

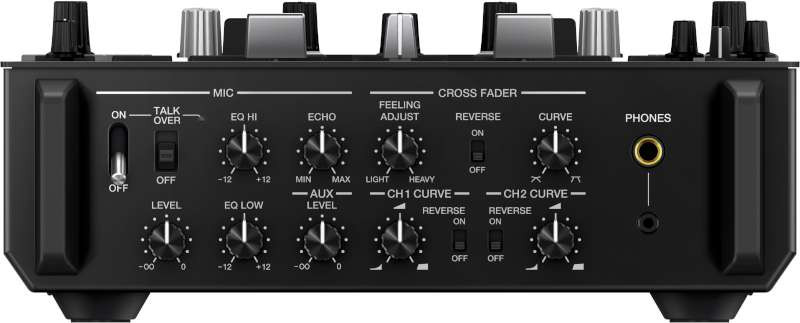

Mic
Mic Connection: XLR / Jack Combo
Talkover: ON/OFF Button
Talkover Attenuator: Yes

Soundcard
Connection: USB
Sample Rate: 24 bit
Frequency: 48 kHz

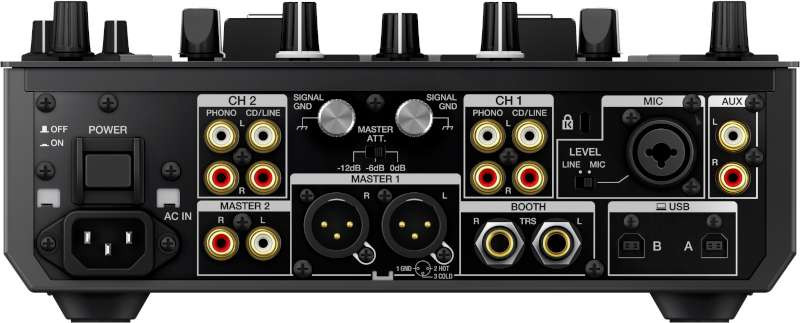

Terminals
Inputs: 2 CD/LINE (RCA), 2 PHONO (RCA), 1 MIC (XLR/Jack Combo), 1 AUX (RCA)
Outputs: 2 MASTER (XLR, RCA), 1 BOOTH (1/4 inch Jack), 2 HEADPHONE MONITOR (1/4 inch Jack, MiniPin)
USB: 2 USB B ports
