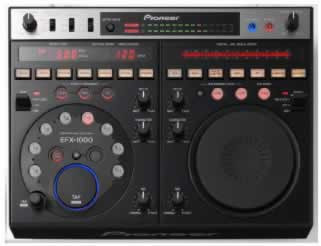

Pioneer EFX-1000 96khz 24bit DJ Effector

FEATURES:
High-Fidelity Sound
The high-fidelity design features 24-bit/96 kHz A/D and D/A signal converters along with a 32-bit DSP, allowing the addition of effects without lowering the original sound quality. A signal bypass function has also been incorporated.

3 Band Beat Effector:
* 1) Beat effects (BPM mode)
The EFX-1000 is equipped with the same automatic BPM counter/beat effector
made popular by the EFX-500, which allows effect processing on single selected
bands in sync with the track tempo (BPM), for greater expressive possibilities than
with conventional all-band effectors.
* 2) Beat effects (RHYTHM mode)
This industry-first rhythm effector lets you apply effects in sync with a rhythm
you input yourself. With the capability of a far wider range of unique effects
compared to previous beat effectors, you have the potential for a new level
of DJ performance.

Digital Jog Break Function
The jog dial allows real-time control of effect sounds. Up to eight seconds of jog
function can be stored in memory for automated replay. In addition to single
memory plaback there is a loop mode for stored jog motion playback. When
used in combination with the beat effector, up to 49 effects can be created.

MIDI IN/OUT Function
External MIDI signals (control signals and timing clock signals) can be used to control the effector and as a medium for using the effector to control a
sequencer or other MIDI component.

Digital Link Function
A variety of functions can be performed by using the dedicated digital link cable to connect this unit to a Pioneer DJ mixer (DJM-1000) with digital link support.

Digital IN/OUT
Equipped with digital IN/OUT connectors at 24-bit/96 kHz sampling, the EFX-1000 allows for use in-studio track creation and other applications where high sound quality is demanded.

TECHNICAL SPECIFICATIONS:
* Power Supply: AC 120 V, 60 Hz
* Power consumption: 16 W
* Operating temperature: +5C to +35C (+41F to +95F)
* Relative humidity: 5% to 85% (without condensation)
* Weight: 2.4 kg (5.3 lb)
* External dimensions: 320 (W) x 234 (D) x 101 (H) mm
(12-19/32 (W) x 9-7/32 (D) x 3-31/32 (H) in)
* Sampling rate: 96 kHz
* A/D, D/A Resolution: 24 bits
* Frequency characteristics: 20 Hz to 22 kHz
* S/N ratio: 83 dB
* Distortion: 0.02 %
* Headroom: 19 dB
* Input level: 10 dBV / +4 dBu (22 kW)
* Output level: 10 dBV / +4 dBu (RCA
pin jacks: 1 kW, Phone jacks: kW) *-10 dBV / +4 dBu is switchable.
