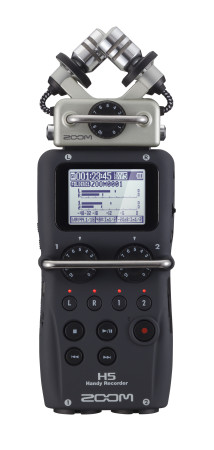

Louder. The design of the XYH-5 mic capsule allows the H5 to handle up to 140 dB SPL equivalent to the sound of a jet aircraft from less than 200 feet away! And to keep your levels under control, the H5 offers compression and limiting.
Cleaner. The H5's rubberized housing and shock-mounted microphones minimize vibration and handling noise, while a low-cut filter helps eliminate wind noise and other kinds of low frequency rumble.
Clearer. The H5 utilizes the same high-quality, low-noise preamps as our flagship H6, ensuring great-sounding recordings in all sonic environments.
Recording Features Pre-Record
The Pre-Record function captures and saves two seconds of audio before you hit RECORD -- perfect for unexpected starts.
Auto-Record
The Auto-Record function allow the H5 to automatically start and stop recording at predefined sound levels.
Backup-Record*
The H5's Backup-Record function automatically records a duplicate set of L/R tracks with 12db less input gain. This audio safety net helps to protect your recordings.
*44.1 and 48 kHz WAV files only.
Inputs and Outputs Ins
The H5's XLR/TRS combo inputs can handle both mic- and line-level signals for microphones, wireless receivers, mixers, keyboards and more. Each input has a dedicated gain control knob. The supplied XYH-5 capsule also provides an additional mic/line input via a ?" mini phone jack.
Outs
A Line Out with adjustable volume allows you to send audio from the H5 to the input of a camera or other device without the need for an attenuator cable. In addition, there's a separate headphone output with a dedicated volume control. You can use both outputs simultaneously to route audio to your DSLR while monitoring with headphones.
Recording Times and File Formats Record continuously for over 15 hours with just 2 AA batteries or extend your recording time indefinitely with the optional AD-17 AC adapter.
The H5 can record up to six monophonic WAV files (or up to three stereo files) in any of the following formats:
• 44.1kHz / 16-bit
• 44.1kHz / 24-bit
• 48kHz / 16-bit
• 48kHz / 24-bit
• 96kHz / 16-bit
• 96kHz / 24-bit
Audio Interface The H5 also works as a USB audio interface for your computer or iPad** complete with a Loop Back function that makes it easy to add narration to music playback.
*Apple Camera Connection Kit required.
Free Production Software The Zoom H5 comes with free download licenses for Steinberg's Cubase LE music production software and WaveLab LE audio editing software.
Features: • Includes detachable X/Y capsule (XYH-5) capable of handling 140 dB SPL
• Shock-mounted mics for reduced handling noise
• Compatible with all Zoom input capsules
• Four-track simultaneous recording
• Records directly to SD and SDHC cards up to 32 GB
• Up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB pad
• Built-in effects, including low-cut filtering, compression, and limiting
• Auto-record, Pre-record, and Backup-record functions mean that you'll never miss that perfect take
• Multichannel and stereo USB audio interface for PC/Mac/iPad with Loop Back function
• Powered by two AA batteries or via USB
• Over 15 hours of operation with alkaline batteries
What's In the Box? Here's what comes included with the H5:
• Operation manual
• XYH-5 X/Y mic capsule
• AA size (LR6) battery x 2
• USB cable
• Foam windscreen
• Case
• Steinberg WaveLab LE software download
• Steinberg Cubase LE software download
Optional H5 accessories • PCH-5 Protective Case for H5 Handy Recorder
• SGH-6 Shotgun Mic Capsule
• SSH-6 Stereo Shotgun Mic Capsule
• EXH-6 Dual XLR/TRS Combo Capsule
• XYH-6 X/Y Mic Capsule
• MSH-6 Mid-Side Mic Capsule
• ECM-3 Extension Cable for Zoom Microphone Capsules
• HS-1 Hot Shoe Mount Adapter
• MA-2 Tripod to Mic Stand Adapter for Handy Recorders
• WSU-1 Universal Windscreen
• APH-5 Accessory Pack includes RCH-5 wired Remote Controller,?AD-17 USB-type AC adapter, and Hairy Windscreen
