Lexicon PCM81 Digital Effects Processor

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

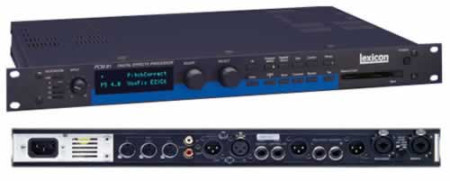

lexicon pcm81
The PCM 81 features two digital signal processors: Lexicon's proprietary Lexichip', to run the reverbs, and a second DSP engine to handle the other effects.

With 24-bit internal processing, a true stereo signal path, balanced analog I/O, full AES/EBU and S/PDIF digital I/O, the ability to mix analog and digital inputs together, and extensive modulation capabilities, the PCM 81 offers an enormous range of studio quality effects.

Pitch FX and Vocal Fix algorithms and presets (available for the PCM 80 on PC cards) are built into the PCM 81. Adding Lexicon's Dual FX algorithm card and preset cards for the PCM 80 (which all work with the 81) increases the number of algorithms to over 40 and the number of presets to nearly 800.

FEATURES:
• All of the features of the PCM 80 PLUS built-in PITCH and Vocal FIX
• AES/EBU and S/PDIF I/O
• 17 Algorithms: 4-Voice, 6-Voice and Pitch
• 300 Preset programs; 50 User
• Dynamic spatialization effects for 2-channel or surround applications
• Studio-standard reverbs and effects, including all of the algorithms from the legendary PCM-70.
• A single Adjust knob is automatically attached to all applicable parameters in each factory tailored preset. This allows fast and powerful
modification of each preset in real time without ever going into the Edit
mode.
• Optional PC (PCMCIA) Cards for both new algorithm programs and user presets
• Pro and Go Modes: Go mode gives you access to as many as ten hand-picked parameters for any particular preset. Pro Mode allows full access to an Edit Matrix of as many as a hundred parameters.
• Balanced Analog I/O - XLR and 1/4" inputs and outputs.
• Digital Inputs & Outputs (S/PDIF)
• 300 Presets and 50 User Registers are internal and standard
• 24 Bit Internal Processing
• Multiple DSP Architecture
• PCMCIA Card Slot for software updates and program storage
• Over 21 seconds of delay time.
• Unique Tempo Modes including Tap-Tempo and MIDI clock control
• Dynamic Spatialization: 3-D effects processing (compatible with Surround
Sound systems)
• A Library of over 700 carefully crafted factory programs with resident and PC-card software.
• Studio-standard reverbs and effects, including all of the algorithms from the legendary PCM-70.
• A single Adjust knob is automatically attached to all applicable parameters in each factory tailored preset. This allows fast and powerful
modification of each preset in real time without ever going into the Edit
mode.
• Optional PC (PCMCIA) Cards for both new algorithm programs and user
presets
• Pro and Go Modes: Go mode gives you access to as many as ten
hand-picked parameters for any particular preset. • Pro Mode allows full access to an Edit Matrix of as many as a hundred parameters.
• Balanced Analog I/O - XLR and 1/4" inputs and outputs.
• Digital Inputs & Outputs (S/PDIF) 300 Presets and 50 User Registers are internal and standard
• 24 Bit Internal Processing
• Multiple DSP Architecture
• PCMCIA Card Slot for software updates and program storage
• Over 21 seconds of delay time.
• Unique Tempo Modes including Tap-Tempo and MIDI clock control
• Dynamic Spatialization: 3-D effects processing (compatible with Surround
Sound systems)
• A Library of over 700 carefully crafted factory programs with resident and PC-card software.


Additional Information

UPCN/A
SKUPCM81
ManufacturerLexicon
Product ConditionNew - On Clearance
ReturnableNo
