Rolls ADI6 DB MAX Active Direct Box

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

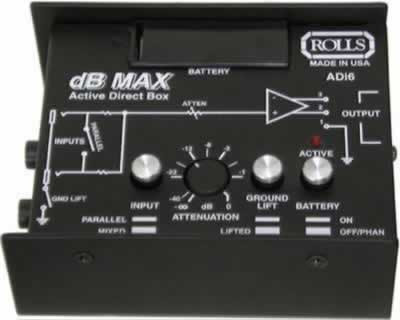

rolls adi6
Images may show accessories or configurations not packaged with this item.
The ADi6 is an active direct box designed to convert a high impedance signal and convert it to low impdance. The unit is housed in a rock-solid steel chassis and will withstand the most punishing operating circumstanses.

FEATURES:
* Paralleled or Mix Inputs
* Variable Attenuation
* Ground Lift
* Battery or Phantom Power operation

TECHNICAL SPECIFICATIONS:
* Max Input: XLR: -10 dBm Balanced
* 1/4": +14 dBV Balanced
* Max Out: +14 dBV Balanced
* Noise Floor: -72 dBV, Out Level Min, Gate Off
* Phantom Power: 12 VDC
* Frequency Response: 10 Hz - 30 kHz, +0 -3 dB
* Gate Release Time: 150 mS - 1 S
* Gate Attack Time: 5 mS
* Comp Attack Time: 5 mS
* Comp Release Time: 800 mS
* Power: 12 VDC 150 mA adapter (center negative)
* Weight: 1 lbs. (.45 Kg)
* Size: 4.15" x 2.46" x 1.55"

Additional Information

UPC N/A
SKU ADI6
Manufacturer Rolls
Product Condition New - On Clearance
Returnable No
