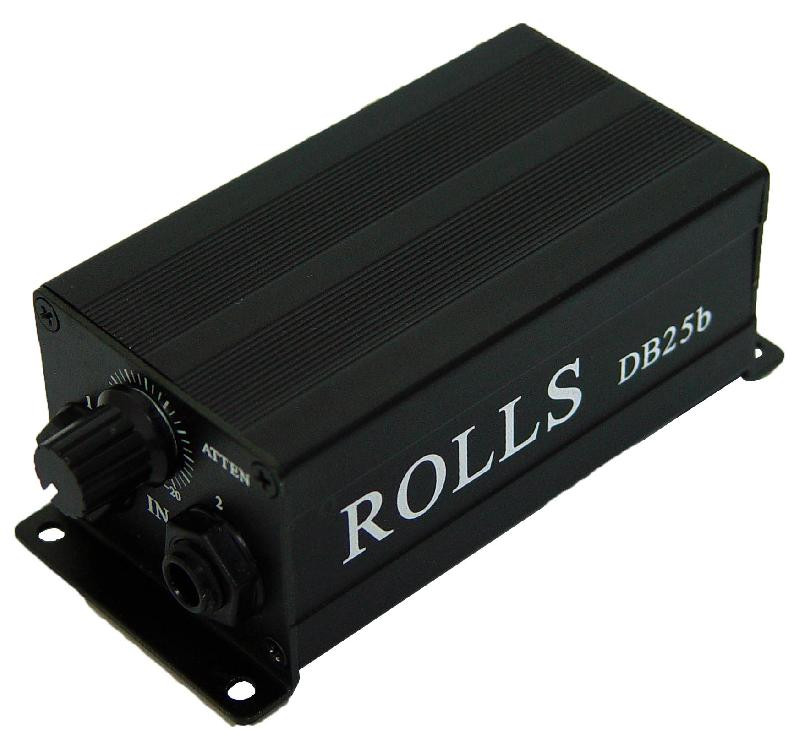

Rolls DB25b Passive Data Direct Box

rolls db25
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable This item has been discontinued or is no longer available.
Buy on Amazon
The DB25b is a transformer balanced, passive direct box. It features a Ground Lift switch for hum elimination, and an Attenuator control for padding the input signal from -20dB to -infinity dB. Padding the input signal provides a way to connect the DB25b to a line level signal, even a speaker level signal and connecting it to a balanced line or Mic input on a mixer. The two 1/4 inch; inputs are paralleled pass-throughs to also send the input signal to a tuner, pre amp, etc.

• Mounting Tabs make it easy to attach to any surface
• Attenuator knob to dial in the exact level you want
• Controls only on the front and back for "brick wall" multiples
• Basic black color for matching any decor
• Frequency response 20 - 20K Hz + -3 dB
• Output imp. 600 ohms
• Input Impedance 50K ohms
• Max output level 10 dBm
• Size 4.5L X 2W X 1.625H
• Weight 8oz, 0.23kg

Additional Information

Product ConditionNew - On Clearance
