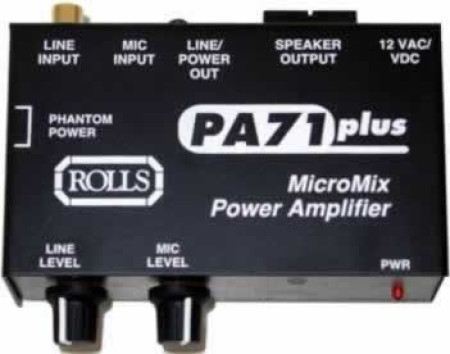

The PA71 Plus mixes an XLR microphone signal with stereo (mixed to mono) RCA signals. The combined signal is sent to spring loaded output terminals via a seven watt power amplifier.
The combined signal is sent to spring loaded output terminals via a seven watt power amplifier.
The unit also features a 1/4" Line/Powered output. The XLR input features switchable 12VDC phantom power.
This unit is ideal for small room applications where a simple mix of a microphone with a cassette or cd player is needed.
TECHNICAL SPECIFICATIONS:• Input Impedance: 47K Ohms
• Power Output: 7 Watts (8 Ohms)
• Voltage Gain: 40 dB
• Maximum Supply Voltage: 18 VDC
• THD: .05% typical
• Total Input Noise: 3 mV
• Efficiency: 65%
• Input Sensitivity: 28 mV
• Bandwidth: 20Hz - 25 kHz
• Size: 4.25" x 2.375" x 1.5"
• Weight: 1 lb.
