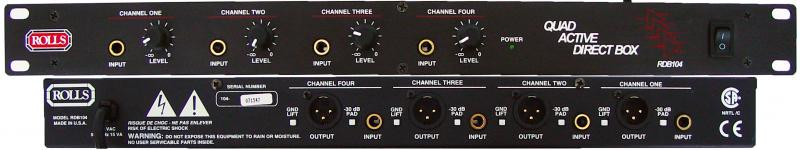

Rolls RDB104 Quad Active Direct Box

rolls rdb104
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
Each channel of this powerful impedance matching device features two paralleled 1/4" inputs (one on the front, one on the rear), an input level control, and an electronically balanced XLR output. The output section features a 30 dB Pad, and a Ground Lift switch.

• Four channels of active impedance matching
• Input Level control
• Switchable 30 dB Pad
• Switchable Ground Lift

Input Impedance: 100 K Ohms
Output Impedance: 100 Ohms balanced
Max. Output Level: +22 dB (Pad out)
Gain: infinity to 0 dB
Power: 120VAC (230VAC) 15VA
Dimensions: 1.75" X 6" X 19" (89mm X 162mm X 482mm)
Weight: 6 lbs. (2.72 Kg)
