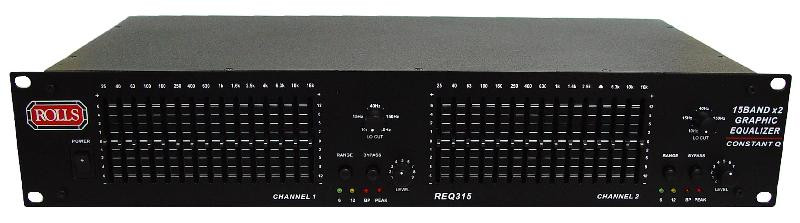

Rolls REQ315 Graphic Equalizer

Not In Stock Not In Stock, But We'll Order It In For You
This item is not in stock, but can usually be back in our warehouse within 4 to 10 days, depending upon stock levels at Rolls's warehouse. This time frame is not guaranteed, rather an estimate based on historical data. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
$250.00
As low as $25/month
    • BONUS! Buy Now and Earn 500 PDJ Bucks ($5.00)! MUST Be Logged In! Domestic U.S. customers only. Exact value may vary once logged in.
The REQ315 is a two channel graphic equalizer utilizing constant Q filtering. The unit is designed for the sound professional that requires precise sound shaping control. All filters are true constant "Q" type, with no broadening near the "flat" setting. High slew-rate circuitry throughout the signal path results in clean, quiet, transparent sound.

• Two channels with 15 bands of constant Q equalization each.
• XLR and 1/4" inputs and outputs.
• Low cut filters.
• 6/12 dB Boost/Cut Range switch.
• Passive bypass.

Specifications
Equalizer:
Channels: 2
Bands: 15
Frequency Response: 20Hz - 20kHz
Accuracy: 5% Center Frequency
Range: +6dB or +12 dB (Switch selectable)
Inputs:
Type: Active Balanced/Unbalanced
Connectors: XLR, 1/4" TRS
Impedance: 12k Ohms
Maximum Level +22 dB (Balanced), +15dB (Unbalanced)
Outputs:
Type: Electronically Balanced
Connectors: XLR, 1/4" TRS
Impedance: 600 Ohms
Maximum Level: +22 dB (Balanced), +15dB (Unbalanced)
RFI Filters: Yes
Passive Bypass Switches: Yes
Overload LED Threshold: 3dB below clipping
Low Cut Filter: 10 - 250Hz, 12dB/Octave
Frequency Response: 20Hz - 20kHz, +0.5dB
THD + Noise: 0.01% (20Hz - 40kHz)
S/N Ratio: 110dB below Max level (A weighted)
Equivalent Input Noise: -95dB (20kHz noise bandwidth)
Dimensions: 3.5"H x 19"W x 8.5"D

Additional Information

UPCN/A
SKUREQ315
ManufacturerRolls
Product ConditionNew
ReturnableYes
